Eye Plate Rectangular 8.0mm Stainless Steel TRADE PACKS

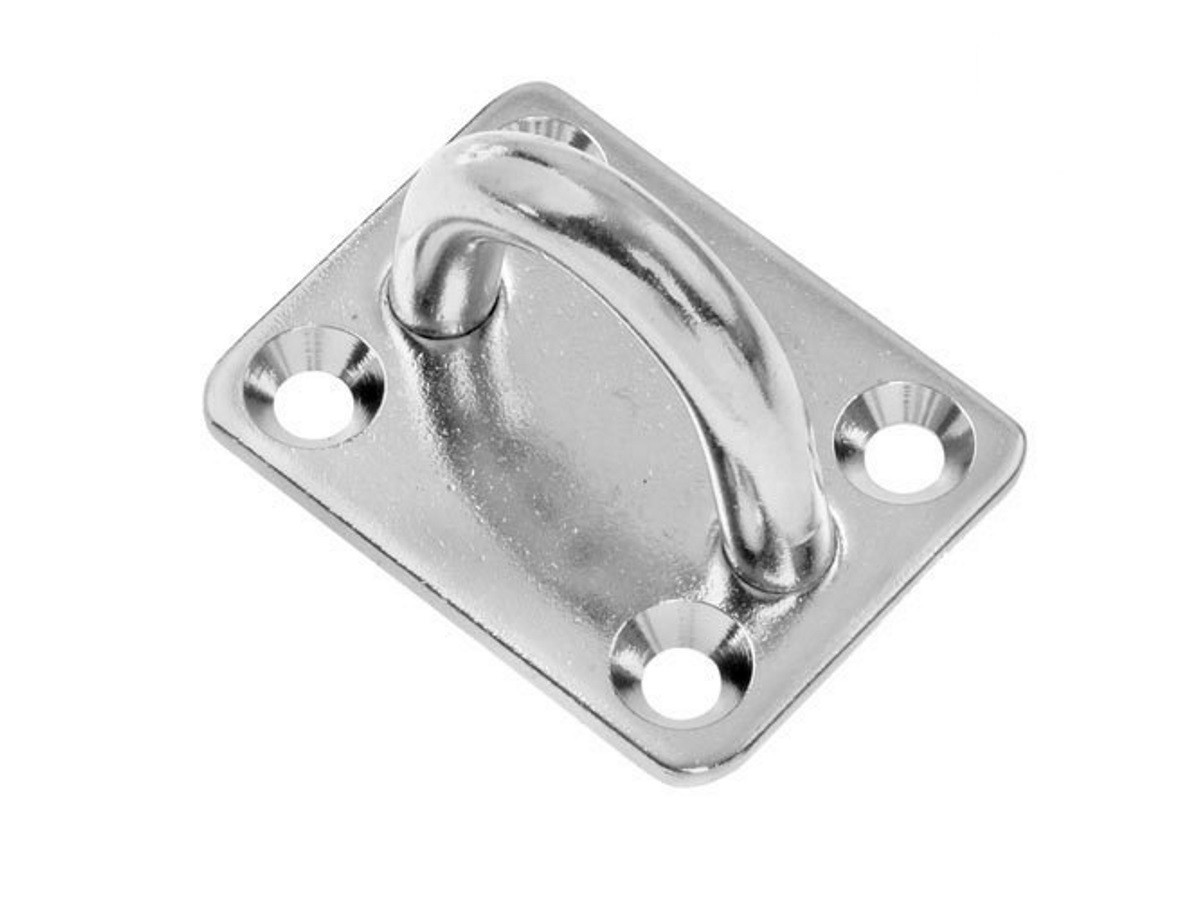

Rectangular Eye Plate 8.0mm G316 Stainless Steel fittingsare generally known as Pad Eyes, Eye Straps or Saddles.  They are attachment points do not attach directly to wire rope. They are designed to be used with fasteners to attach to a flat surface.

CLICK HERE for single fittings and other sizes

SKU: 59621 Category:

Description

Rectangular Eye Plate 8.0mm G316 Stainless Steel fittings are generally known as Pad Eyes, Eye Straps or Saddles. They are attachment points do not attach directly to wire rope. They are designed to be used with fasteners to attach to a flat surface. They are strongest when the fasteners are under a tension load. Rectangular Eye Plate fittings can be secured with various fasteners such as counter sunk screws, pan head screws, and rivets. Other possibilities are bolts of some sort that are screwed into an embedded thread fastener such as a rivet nut or a timber insert.

Application: If wire rope is passed through or around a saddle in a loop, then the wire rope should be ‘protected’ by a thimble. The thimble acts to distribute the load and prevent the wire being pulled through a radius that is tighter/smaller than is recommended. These fittings are designed to work with open turnbuckles, closed turnbuckles, manually swaged fittings, and hydraulically swaged terminals. Each size of Eye Plate is designed to work with a specific size (range) of wire. It is recommended that similar alloy fasteners are used so that a dis similar (corrosive) alloy reaction is avoided.

Quality: All Low Cost Wire products meet our strict ISO Quality Standards. Firstly, our products achieve the optimal balance between high tensile strength, fatigue resistance, abrasion resistance, and structural stability. Secondly, our long experience in the industry enables the design and manufacture of aesthetically beautiful and functional products. Finally, our products have a special treatment for bright and smooth surface of wire and cable to deliver a truly top-shelf, long lasting product that will look new for ages…

Dimensions: A = ~21.9mm A1 = ~5.5mm D = ~8.0mm H = ~21.2mm L = ~50.2mm W = ~39.1mm
