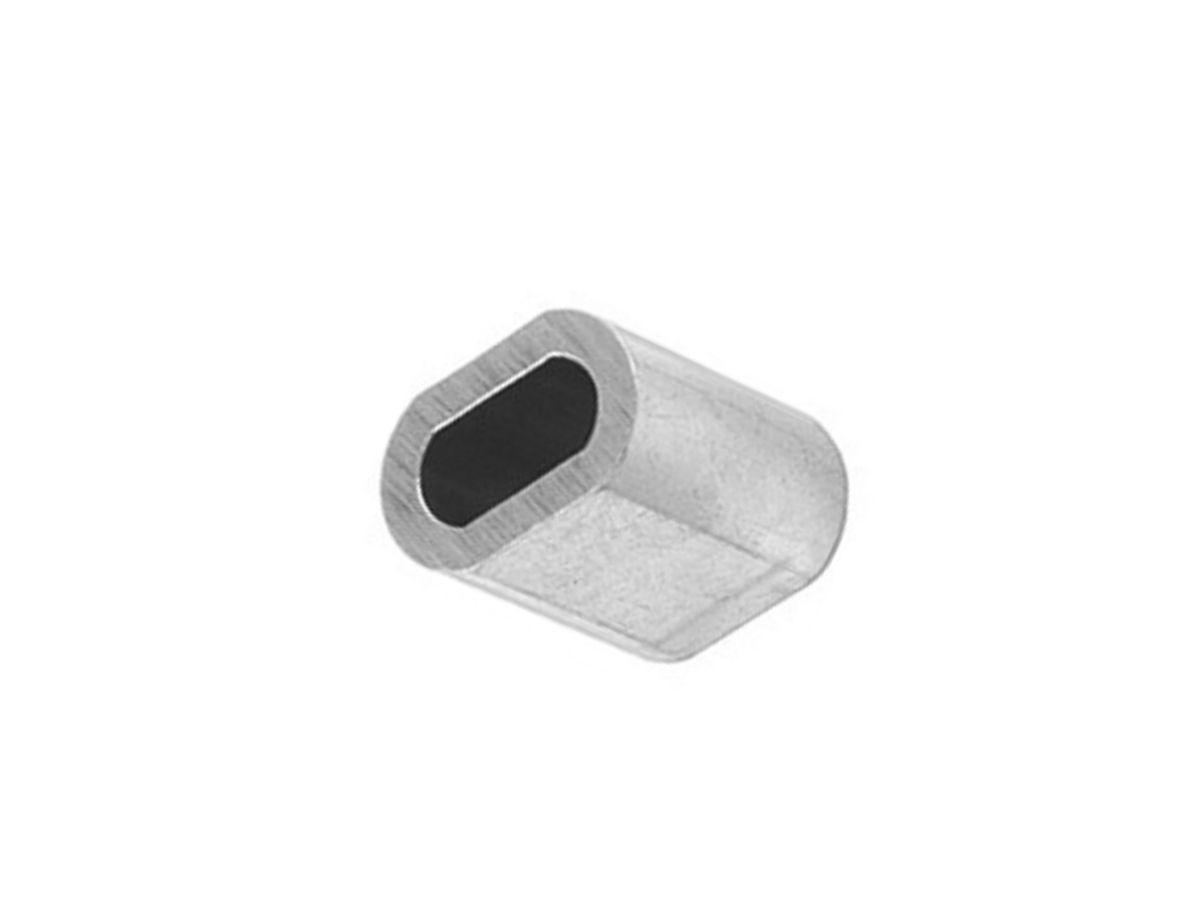

Oval Aluminium Swage Sleeves ALL SIZES

Description

Oval Aluminium Swage Sleeves include crimps, clamps, or ferrules. Additionally, these Swage Sleeves are oval in shape and conform to internationally accepted standards (EN 13411-3 and DIN 3093 are the standards to which these items are produced). Generally, we recommend swaging/crimping these Sleeves with a Hydraulic Press to retain a predictable finish and reliable MBS. Sleeves below 3mm may be crimped manually, but larger OVAL sleeves MUST be crimped hydraulically. Proper sizing and swaging technique using Swage Sleeve splicing confers 90% of the wire rope breaking strength given the resultant splice conforms with published and tested tables.

Usage: The Oval Aluminium Swage Sleeves suit galvanised wire applications. Our aluminium alloy is not-compatible with any Stainless Steel Wire Rope. OvaL Swage Sleeves require thimbles (the tear drop shaped thin strips of metal that go inside of the Terminating Loop). Sleeves with thimbles distribute the force of the bearing point evenly. Consequently, this minimizes wear and stretch on the wire cable. The swage and thimble are then secured using an appropriate crimping tool. Swage Sleeves sizing is precise. As a result, a Swage Sleeve fits a limited range of wire diameters. Zinc or Galvanised Steel thimbles complement these Swage Sleeves.

Quality: All Low Cost Wire products meet our strict ISO Quality Standards. Firstly, our products achieve the optimal balance between high tensile strength, fatigue resistance, abrasion resistance, and structural stability. Secondly, our long experience in the industry enables the design and manufacture of aesthetically beautiful and functional products. Finally, our products have a special treatment for bright and smooth surface of wire and cable to deliver a truly top-shelf, long lasting product that will look new for ages…

Oval Aluminium Swage Sleeve Trade Pack sizing is also available for volume discount transactions
