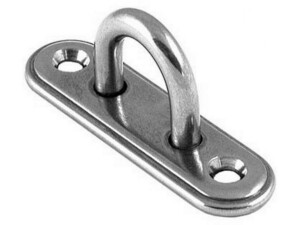

Oval Eye Plate 8.0mm Stainless Steel TRADE PACKS
Oval Eye Plate 8.0mm G316 Stainless Steel or Strap Saddle fittings are generally known as Pad Eyes or Saddles. They are attachment points do not attach directly to wire rope. They are designed to be used with fasteners to attach to a flat surface. They are strongest when the fasteners are under a tension load.
CLICK HERE for single fittings or other sizes
Description
Oval Eye Plate 8.0mm G316 Stainless Steel or Strap Saddle fittings are generally known as Pad Eyes or Saddles. They are attachment points do not attach directly to wire rope. They are designed to be used with fasteners to attach to a flat surface. They are strongest when the fasteners are under a tension load. Oval Eye Plate fittings can be secured with various fasteners such as counter sunk screws, pan head screws, and rivets. Other possibilities are bolts of some sort that are screwed into an embedded thread fastener such as a rivet nut or a timber insert.
Usage: If wire rope is passed through or around a saddle in a loop, then the wire rope should be ‘protected’ by a thimble. The thimble acts to distribute the load and prevent the wire being pulled through a radius that is tighter/smaller than is recommended. These fittingsare designed to work with open turnbuckles, closed turnbuckles, manually swaged fittings, and hydraulically swaged terminals. Each size of Eye Plate is designed to work with a specific size (range) of wire.It is recommended that similar alloy fasteners are used so that a dis similar (corrosive) alloy reaction is avoided.
Quality:All Low Cost Wire products meet our strict ISO Quality Standards. Likewise, our Stainless Steel Wire is AISI Mill Certified at manufacture. Consequently, an AISI Mill certificate of alloy composition (copy) is available for a small additional fee at the time of purchase. Our wire rope delivers the optimal balance between high tensile strength, fatigue resistance, abrasion resistance, and structural stability. Finally, our process provides a special treatment for a bright and smooth surface on the wire and cable. As a result, this delivers a truly top-shelf, long lasting product that will look new for ages
Dimensions: A = ~ x B = ~ x d = ~8.0mm L = ~ x
