Heavy Duty Hydraulic Swager

$129.98 $99.98 Includes GST


Heavy Duty Hydraulic Swager

$129.98 $99.98 Includes GST

This Heavy Duty Hydraulic Swager is a little beauty that works for hydraulically swaging G316 Stainless Steel Wire Rope in architectural applications. It is easy to use with a good cycle time.

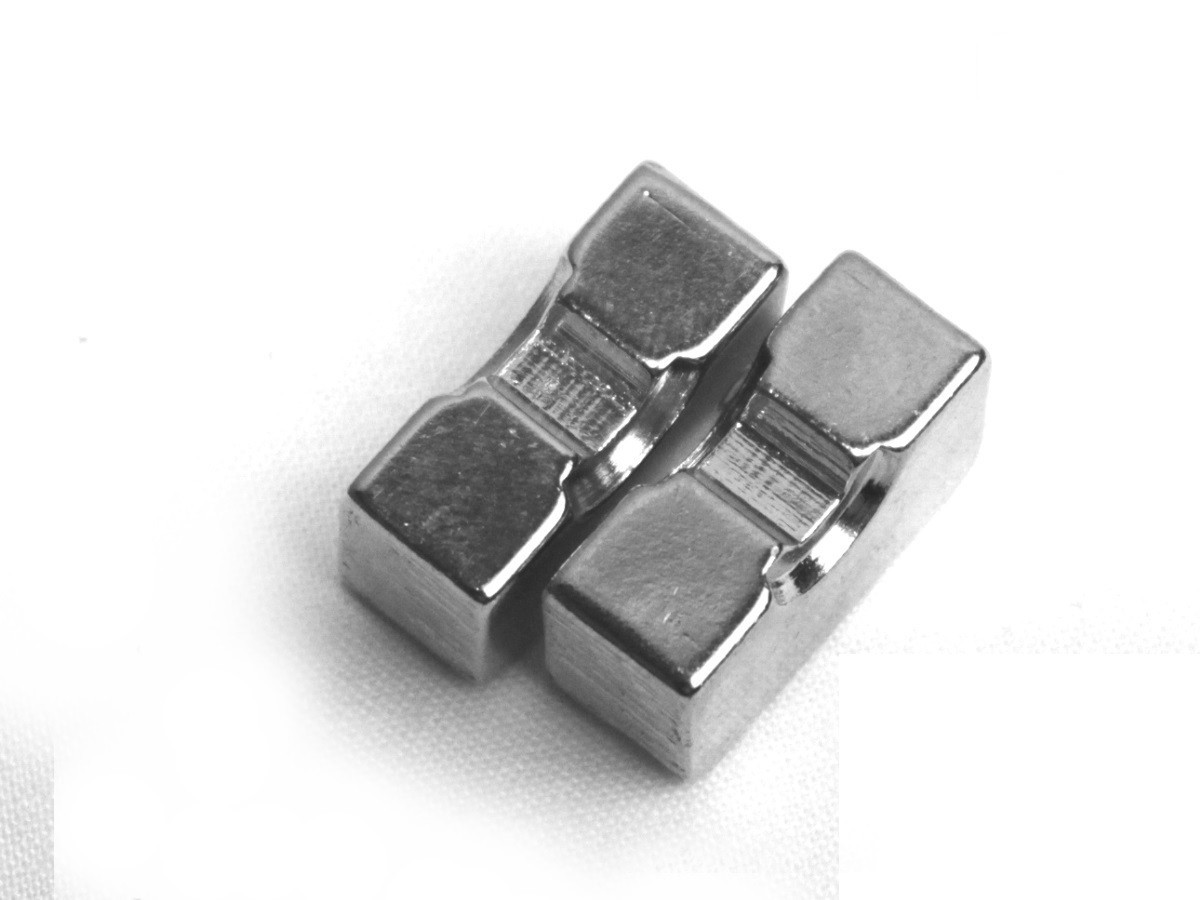

For replacement Dies CLICK HERE

In stock (can be backordered)

SKU: 532 Categories: , , ,

Heavy Duty Hydraulic Swager 64T Tool

This awesome Heavy Duty Hydraulic Swager Tool generates 64 Tons / in2 with #8 dies and is industry fabrication quality and IMHO – one of the best hand tools around.  As well, this tool has the improved lever shafts secured with an adjustable “Lock On” pressure dial – made stronger to last longer. It is well designed with reliable, solid construction and works
with both

  • Hydraulically swaged Stainless Steel fittings (for 2.4mm, 3.0mm, 3,2mm, and 4.0mm Wire Rope)
  • Hand Swaged Aluminium & Copper & Nickel Coated Copper Ferrules and end stops (for.1.0mm, 1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 4.8mm, 5.0mm, 6.0mm and 6.4mm Wire Rope).

Our specially hardened Chrome Vanadium plated Dies are what are required to ‘swage’ a ferrule and are  differentially sized.


This tool generates 5 Tons ‘at the head’ – which means when the area of the dies is considered – the effective pressure is > 64 Tons / in2 or over 120,000 lbs/in2 or over 890,000 KPa. That is enormous and has the ability to “pressure weld” the fittings into the wire rope.

To manage this pressure, this tool has a ‘pre-set’ pressure valve to every swage is  perfect and achieved at the same pressure. It also works as a safety valve so that you don’t (literally) blow the end off of the tool.

Features & Benefits:

  • Two Handed operation
  • Special Factory formed Chrome Vanadium Carbon Steel Swaging Dies for consistent perfect swaging every single time!
  • 300mm for good reach and  leverage and power
  • Dies can be locked in place
  • Suits swaging/crimping Nickel Coated Copper Ferrules/Swages as well as Stainless Steel Fittings
  • Works with swageable fittings for 1.0mm, 1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 4.8mm, 6.0mm and 6.4mm wire rope
  • Shock-proof design with ergonomic handles to eliminate vibration
  • Rubberized ergonomic handles make it easier to use for extended periods


  • Overall length of the tool (300mm / 12″) provides excellent leverage
  • Weight 1.9kg
  • Jaw Spread varies by Die Set – 13.3mm to 20.0mm
  • Minium Diameter of Wire – 1.0mm
  • Maximum Diameter of Wire – 6.0mm
  • Force of tool – 64 Tons / in2 with #8 dies


  • 1Heavy Duty Hydraulic Swage Tool
  • 1 – Clip Lock Plastic Molded Case
  • 1 – Die Set (#4, #6, #8, #10, #16, #25, #35, #50)

Weight2.75 kg


Power Source

Hydraulic, Manual

Wire Diameter

1.2mm, 1.5mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 4.8mm, 5.0mm, 6.0mm
