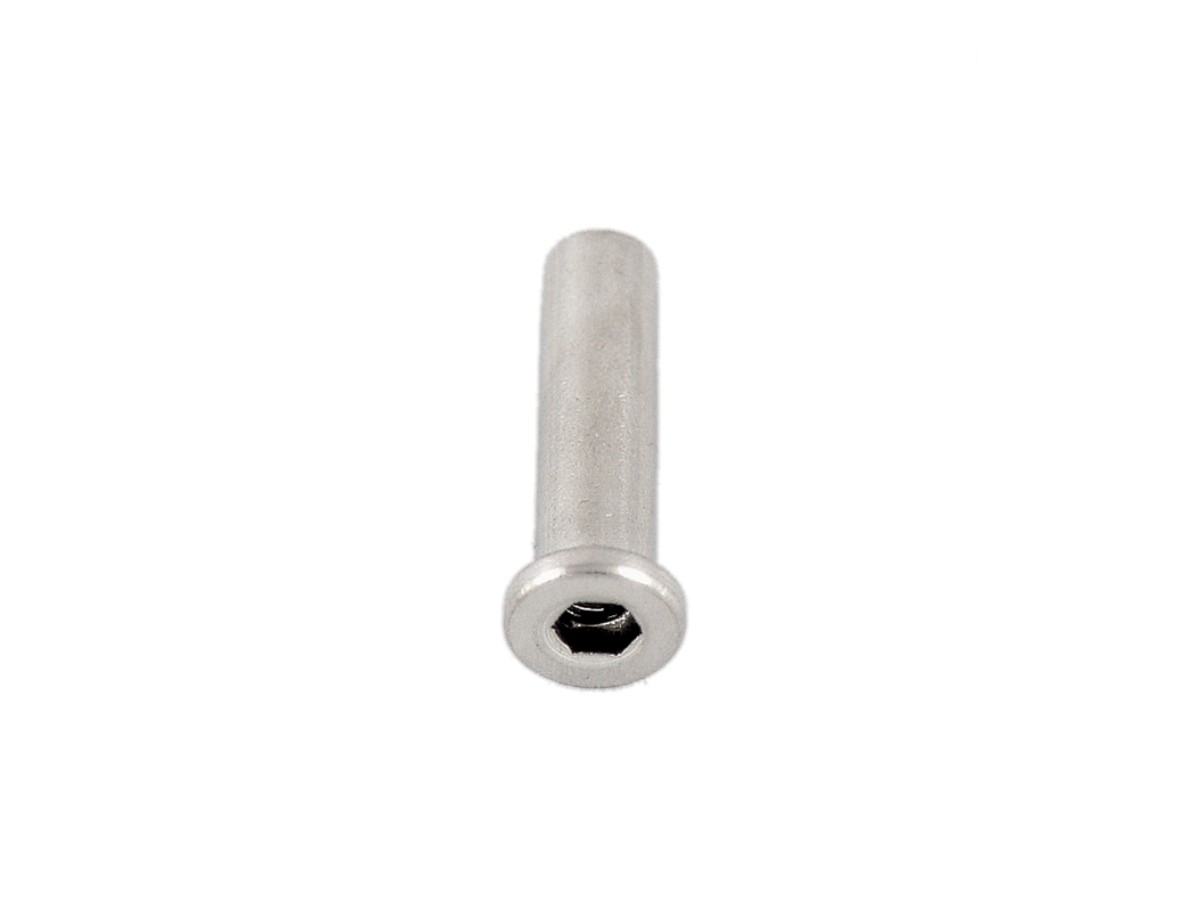

Hex Socket Tensioner G316 Stainless Steel ALL SIZES
Hex Socket Tensioner G316 Stainless Steel (also known as Female Hex Adjusters) are forged AISI 316 marine grade stainless steel.Female Hex Adjusters are use with the Swaged Male Terminal Ends to provide an tension adjustable point for 1 end of a wire run.
Single Items Onlyand for Volume Discounts, try our…Trade Packs
Description
Hex Socket Tensioner G316 Stainless Steel (also known as Female Hex Adjusters) are forged AISI 316 marine grade stainless steel.Female Hex Adjusters are use with the Swaged Male Terminal Ends to provide an tension adjustable point for 1 end of a wire run. Together, this set of connectors will work on either a metal or a wooden post of up to 100mm in diameter.Additionally, It has a “handed” thread. The adjustable G316 Stainless Steel terminal fastens to studs as anchor points. As a result, swaged Terminals must match the size of the anchor points. Additionally, fittings of a similar swaging style are used in concert with Socket Tensioners.
Usage: The Hex Socket Tensioner fits an 8mm anchor hole in the frame or area that will contain the wire. First drill a 8mm hole through the post. Swage the Wire to the Swaged Male Terminal End. Insert the Male end into the hole. Enlarge the hole on the backside of the post to 8mm, then screw on Female Hex Adjuster and tighten as appropriate. To clarify, swaging is the process of uniformly crushing a fitting from a starting diameter to a finished diameter. Therefore, the chosen swaging tool must achieve a cold pressure weld. Logically, the requisite pressure and tool size varies with the size of the wire and the fitting. Consequently, we recommend Swaging G316 Stainless Steel fittings onto wire larger than 2.0mm with an adequate hydraulic swaging tool.
Quality: All Low Cost Wire products meet our strict ISO Quality Standards. As well, they are all made with AISI Marine Grade stainless steel. Firstly, our products achieve the optimal balance between high tensile strength, fatigue resistance, abrasion resistance, and structural stability. Secondly, that long experience with design and manufacturing enables the specification and production of aesthetically beautiful and functional products. Finally, our products have a special electro polished treatment for bright and smooth surface of wire and cable to deliver a truly top-shelf, long lasting product that will look new for ages…
Hex Socket Tensioner Trade Pack sizing is also available for volume discount transactions
