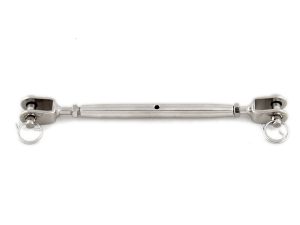

Jaw Jaw Rigging Screw M8 G316 Stainless Steel TRADE PACKS

Description

Jaw Jaw Rigging Screw M8 G316 Stainless Steel is a turnbuckle also known as a Jaw Jaw Bottle Screw. They are ideal fasteners for projects requiring tensioners or turnbuckles forstainless steel wire rope. A Rigging Screw is a closed body turnbuckle. These fasten with a removable pin, and pivot at both ends to easily adjust on a secured post or frame. Consequently, they are easily attached to a saddle or lag screw eye and provide a professional and timeless look.

Usage: The Jaw Jaw Rigging Screw M8 will work with a range of fittings. They fasten with the removable pin to an anchor hole. An anchor holes form the frame or area that will contain the wire. Generally, the Jaw Jaw Rigging Screws work with terminal loops formed with ferrules and thimbles. A manual hand swager crimps the ferrule to the appropriate diameter of wire rope. With both right-hand and left-hand threads, the body of the Jaw Jaw Rigging Screw M8 can easily provide tension to your wire rope, without bending or stretching the wire. Tighten the body of the rigging screw with a c-spanner by rotating the body clockwise until tensioned to your needs.

Quality: All Low Cost Wire products meet our strict ISO Quality Standards. Firstly, our products achieve the optimal balance between high tensile strength, fatigue resistance, abrasion resistance, and structural stability. Secondly, our long experience in the industry enables the design and manufacture of aesthetically beautiful and functional products. Finally, our products have a special treatment for bright and smooth surface of wire and cable to deliver a truly top-shelf, long lasting product that will look new for ages…

Dimensions: D = ~ 5.8mm D1 = ~ 5.0mm L = ~ 108.0mm L1 = ~ 80.0mm
