Jaw Swage Rigging Screw Fork Terminal Long Screw Eye Short Eye Bolt SRTM-C
Potentially Very Useful Related Items…
Description
Jaw Swage Rigging Screw Fork Terminal Long Screw Eye Short Eye Bolt SRTM suits a run of wire of 10 meters or less (hence the SR or Short Run). There a single tensioning point and two attachment points. attachments are one 6x75mm (long) Lag Eye Screw and one M6x15mm (short) Mini Eye Bolt. These attach directly into softwood or hardwood timber posts on one end and metal posts on the other. (hence the TM or Timber to Metal). And this has Lock Nuts
Application
The first end of the run has a 5mm Jaw / Swage Rigging Screw (for wire tensioning) swaged to the wire. This attaches to the first 76mm Screw Eye. The Screw Eye is fastens to a timber post or wall. The second end uses a 5mm Fork Terminal swaged to the wire to attach to the M6x15mm Mini Eye Bolt which is fastened to the metal post or wall.
Wire may be installed through the intermediate posts and ‘cut to length’. Please make sure you expand the turnbuckles before measurement and drill the intermediate posts out to at least 4mm prior to swaging in place. Alternately, if you build the wire before you install it, then the length of a wire run is determined by the ‘inside to inside’ post measurement less a fixed amount which represents the distance between the attachment posts ‘taken up’ by the fittings when installed and adjusted properly. The fixed amount for this kit varies according to wire diameter.
Contents
- 6mm X 75mm Lag Eye Screw Stainless Steel 316 Marine Grade (1 included)

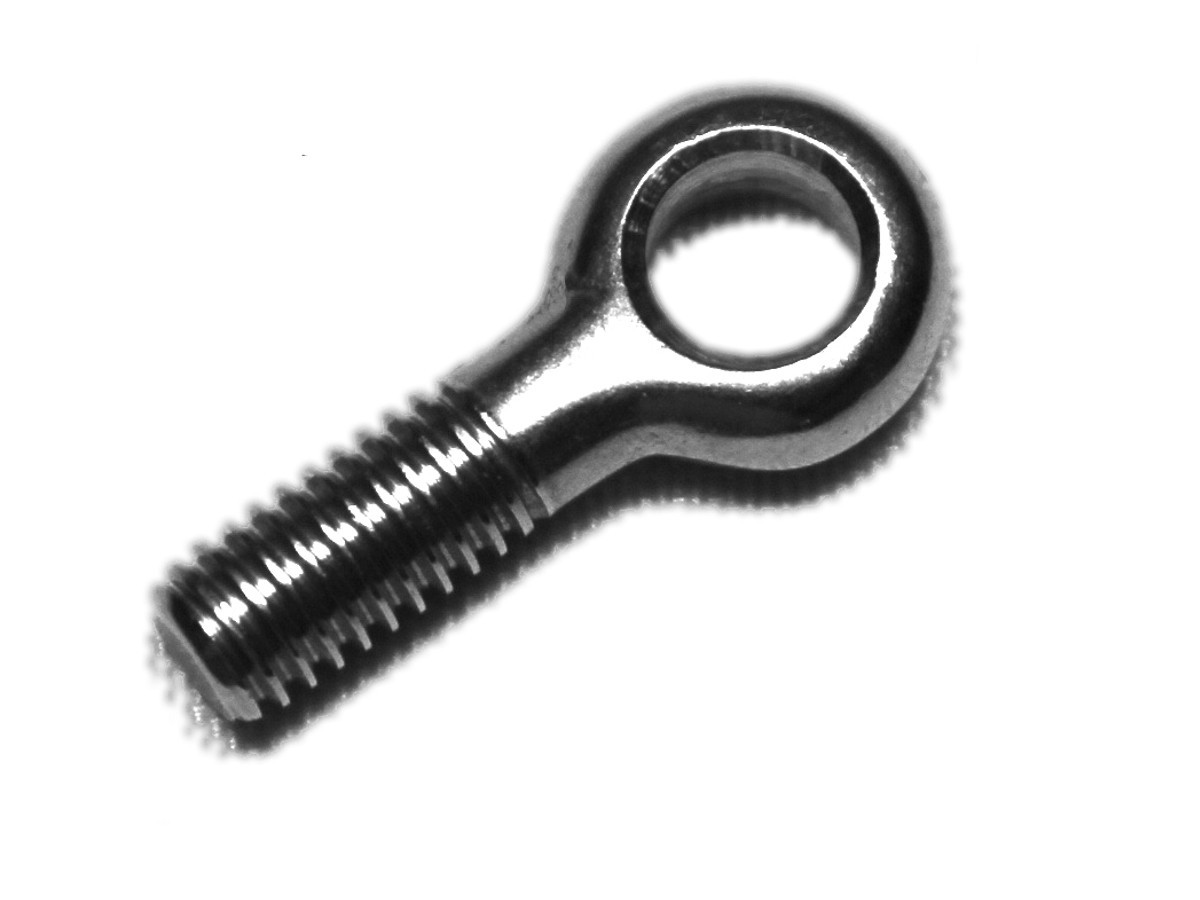

- M6x15mm Mini Eye Bolt Stainless Steel 316 Marine Grade (1 included)
- Jaw/Swage Rigging Screw G316 Stainless Steel Marine Grade (1 included)
- Fork Terminal G316 Stainless Steel Marine Grade (1 included)
- M6 Hex Nut G316 Stainless Steel Marine Grade (1 included)
- 6mm Washer G316 Stainless Steel Marine Grade (1 included)
Characteristics
- Balustrade Kit for 1 Runs/Wire
- Post Connections TM (Timber to Metal)
- Recommended Run Length <10M (SR)
- Swaging Method: Hydraulic
- Wire Structure: 7×7, 1×19
- Diameter of Wire: 2.4mm, 3.2mm, 4.0mm
- Section Orientation: Flat, Stairs, Angle
- Wire Orientation in a Section: Horizontal, Vertical
