Jaw Swage Rigging Screw Fork Terminal Short Eye Bolt Hex Nut SRMM BlackTech
This kit suits a run of wire of 10 meters or less (hence the SR or Short Run) as there is a single tensioning point. Attachments are two M6 x 1.0 x 15mm Mini Eye Bolts to attach directly into metal posts (hence the MM or Metal to Metal) using Stainless Steel lock nuts – but its all BLACK
Click for the Long Run version of this Kit LRMM
Potentially Very Useful Related Items…
Description
BlackTech Jaw Swage Rigging Screw Fork Terminal Short Eye Bolt Nutsert SRMM kit is all 316 Stainless Steel, but its Black. And it suits a run of wire of 10 meters or less (hence the SR or Short Run) because there is a single tensioning pointy. The single tensioning point uses two attachment points which are two M6 x 1.0 x 15mm (Short) Mini Eye Bolts. These attach directly into the two metal posts (hence the MM or Metal to Metal) once threads have been drilled and tapped.

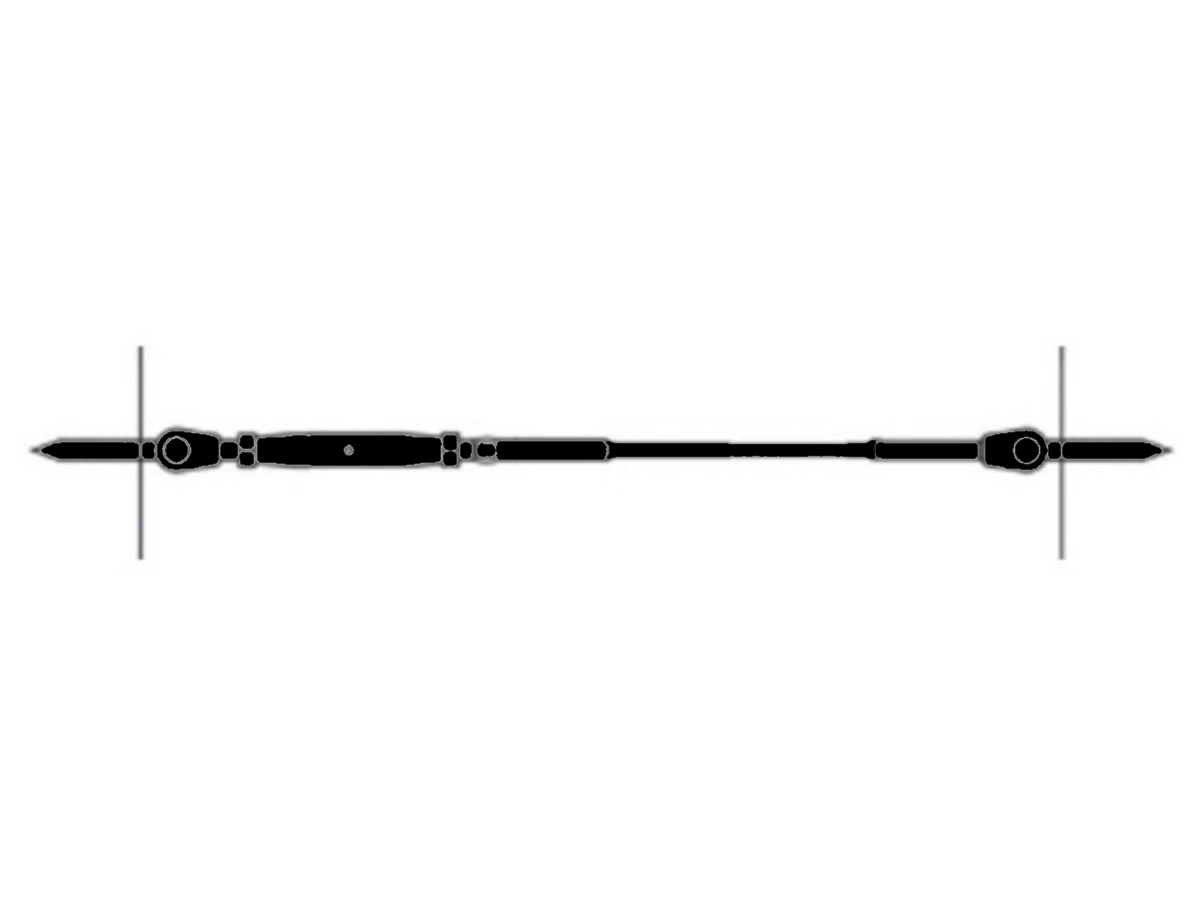

Application Drill and tap the posts with an M6x1.0 thread. The first end of the run has a Jaw / Swage Rigging Screw (for wire tensioning) swaged to the wire. Attach the tensioner to the first 15mm Eye Bolt. The Mini Eye Bolt fastens to a metal post or plate. Attach the second end using a Fork Terminal swaged to the wire to attach to the second 15mm Mini Eye Bolt which is fastened to the second post or wall. We recommend that the end posts are drilled and tapped to M6x1.0 using one of our TiN Drill-Taps. Alternatively, RHT BlackTech Nutserts are also available separately.
Contents
- M6 x 1.0 x 15mm Mini Eye Bolt 316 BlackTech Stainless Steel Marine Grade (2 included)
- Jaw/Swage Rigging Screw G316 BlackTech Stainless Steel Marine Grade (1 included)
- Fork Terminal G316 BlackTech Stainless Steel Marine Grade (1 included)
- M6 RHT Hex Nuts G304 BlackTech Stainless Steel Marine Grade (2 included)
Characteristics
- Balustrade Kit for 1 Runs/Wire
- Post Connections MM (Metal to Metal)
- Recommended Run Length <10M (SR)
- Swaging Method: Hydraulic
- Wire Structure: 1×19
- Diameter of Wire: 3.2mm
- Section Orientation: Flat, Stairs, Angle
- Wire Orientation in a Section: Horizontal
