Description
Jaw Swage Rigging Screw Short Screw Eye Short Eye Bolt LRTM Kit suits a run of wire of up to 20 meters (hence the LR or Long Run). The Jaw Swage Rigging Screw provides a tensioning point at both ends. Consequently, this makes both ends adjustable. Ultimately, the eye bolts/screws secure both ends of the wire. There is a 6x40mm Lag Eye Screw and a M6x1.0 Mini Eye Bolt that form the two attachment points. These attach directly into a timber posts and a metal post(hence the TM or Timber to Metal). Optional versions of this Kit work with 2.4mm, 3.2mm, and 4.0mm Wire Rope.
Application
We recommend cutting, building, installing (a single wire first) and reviewing your installation to ensure that it looks the way YOU want it to look once its complete.
Option 1 – Build in Place First step, secure the eye bolts/screws. Subsequently, install the wire through the intermediate posts and ‘cut to length’. Secondly, drill the intermediate posts out to at least 4mm prior to swaging in place. Thirdly, before swaging, please expand all of the tensioners. Finally, this preserves the maximum adjust-ability.
Option 2 – Pre Build Alternately, you build the wire into the Jaw Swage Rigging Screw Short Screw Eye Short Eye Bolt LRTM Kit before you install it. Consequently the wire length is the ‘inside to inside’ post measurement less a fixed amount. Interestingly, this fixed amount is the distance ‘taken up’ by the fittings. Finally, the kit installs and adjusts properly with the correct length adjustment.
Contents
- Jaw Swage Rigging Screw Stainless Steel 316 Marine Grade (2 included)

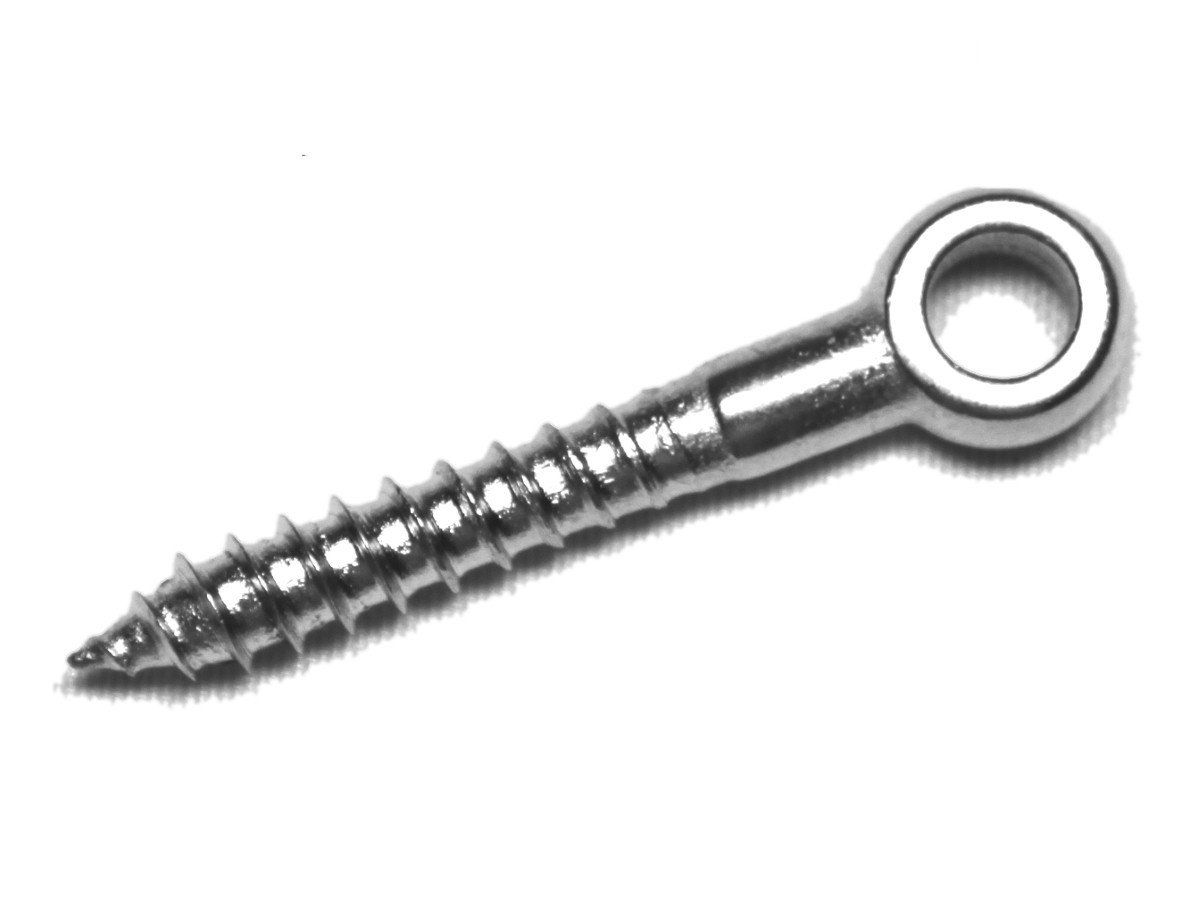

- 6mm x 50mm Lag Eye Screws Stainless Steel 316 Marine Grade (1 included)
- M6x1.0 Mini Eye Bolt Stainless Steel 316 Marine Grade (1 included)
Characteristics
- Balustrade Kit for 1 Runs/Wire
- Post Connections TM (Timber and Metal)
- Recommended Run Length: Up to 20M (LR)
- Swaging Method: Hydraulic
- Wire Structure: 7×7, 1×19
- Diameter of Wire: 2.4mm, 3.2mm, 4.0mm
- Section Orientation: Flat, Stairs, Angle
- Wire Orientation in a Section: Horizontal, Vertical
