Lag Swage Rigging Screw LRTT BlackTech
BlackTech Lag Swage Rigging Screw LRTT This kit suits a run of wire of 10 meters or more (hence the LR or Long Run). There are two Lag Swage Rigging Screws that form two attachment points – and its all BLACK
Click for the Short Run version of this Kit SRTT
Potentially Very Useful Related Items…
Description
BlackTech Lag Swage Rigging Screw LRTT This kit suits a run of wire of 10 meters or more (hence the LR or Long Run). There are two Lag Swage Rigging Screws that form two attachment points. These attach directly into softwood or hardwood timber posts (hence the TT or Timber to Timber) and its all BLACK.

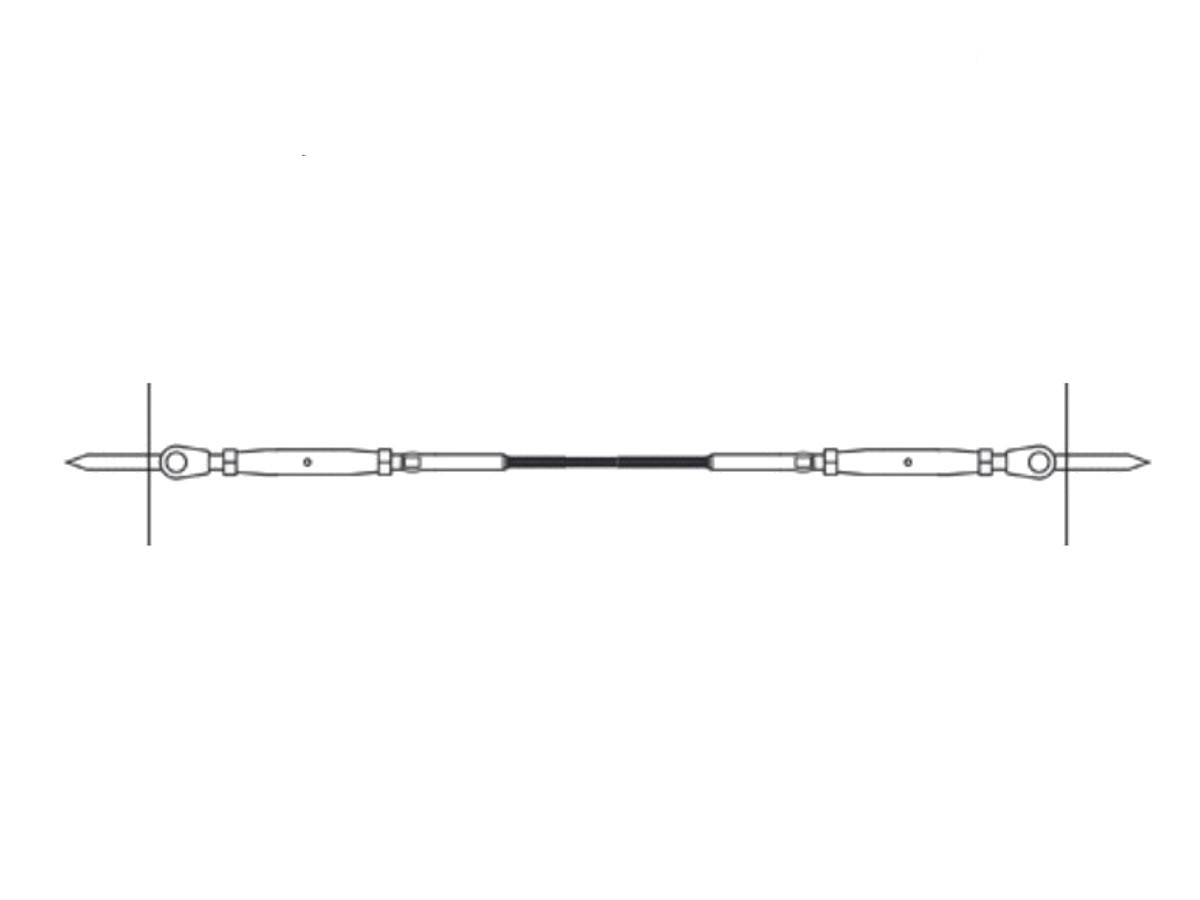

Application Both ends of the run have a Lag Swage Rigging Screw which is fastened to a post or wall. Wire may be installed through the intermediate posts and ‘cut to length’. Please make sure you cut the wire beforehand. It is not recommended to ‘cut to size’ once the fittings are installed. Drill the intermediate posts out to at least 4mm prior to swaging in place.
Alternately, if you build the wire before you install it, then the length of a wire run is determined by the ‘inside to inside’ post measurement less a fixed amount which represents the distance between the attachment posts ‘taken up’ by the fittings when installed and adjusted properly. We recommend cutting, building, installing and reviewing your installation to ensure that it looks the way YOU want it to look once its complete
Characteristics
- Balustrade Kit for 1 Runs/Wire
- Post Connections TT (Timber to Timber
- Recommended Run Length >10M (LR)
- Swaging Method: Hydraulic
- Wire Structure: 7×7, 1×19
- Diameter of Wire: 3.2mm
- Section Orientation: Flat, Stairs, Angle
- Wire Orientation in a Section: Horizontal
Contents
- M6 Lag Swage Rigging Screw Stainless Steel 316 Marine Grade (2 included)
