Light Duty Forged Hand Swaging Tool Range 0.5mm-1.6mm

$34.89 $27.98 Inc GST

Sale!
Light Duty Forged Hand Swaging Tool Range 0.5mm-1.6mm
Forged Manual Hand Swager
Forged Hand Swage and Cutting ToolLight Duty Mechanical Hand Swage and Cutting Tool
0.5mm - 1.5mm Cutting Swage Tool Open
Light Duty Hand Swage Tool Close Up

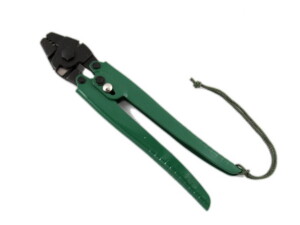

The Light Duty Manual Hand Swager

Light Duty Forged Hand Swaging Tool Range 0.5mm-1.6mm

$34.89 $27.98 Inc GST

SKU: 29186 Category:

The Light Duty Hand Swager has an “included” cutting ability. It is also known as a Manual or Mechanical Swaging Tool. This tool has a range of sizes of ferrules that they will compress or crimp or swage. This tool is recommended for use on copper or aluminium ferrules / swages for 0.5mm to 1.6mm wire rope.

The Light Duty Hand Swaging Tool is a 254mm 3 Hole Swaging Tool. It includes a cutting ability. This tool will compress or crimp or swage a range of sizes of ferrules. This tool is available in either Stainless Steel or forged steel construction. Its designed with 3 crimping holes to meet your different needs – all made from hardened steel. The jaws are suitable for both aluminium, copper, and brass sleeves. The 3 Holes (crimping positions) suit swages/ferrules for 0.5mm, 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm  and 1.6mm wire rope.

****

Features:  The Light Duty Forged Hand Swaging Tool is portable.  Therefore, it is light enough to carry.  Conveniently, this tool  has a Fiber Leash – so it will not fall overboard. The smooth one Handed operation does not require any additional Vibration damping Rubber Grips.  Additionally, the tool has forged jaws and a 2 Side Cutters. The two convenient side cutters work on wire up to 2.0mm Galvanised or Stainless Steel Wire Rope. Finally, the Swaging tool has  precision ground Factory formed Swaging Holes for consistent perfect swaging every single time!

****

Usage: The Light Duty Forged Hand Swaging Tool is recommended for Swaging of Hourglass Ferrules or Swages.  LCW Recommends Nickel Coated Copper or Aluminium swages.  The tool suits swaging 0.5mm, 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm  and 1.6mm wire rope.

****

Quality:  All Low Cost Wire products meet our strict ISO Quality Standards.  Firstly, our products achieve the optimal balance between component strength, fatigue resistance, abrasion resistance, and structural stability. Secondly, our long experience with wire rope projects enables the design, development  and manufacture of aesthetically beautiful and functional products. Finally, our products have a special treatment for bright and smooth surface of wire and cable to deliver a truly top-shelf, long lasting product that will look new for ages…

Usage Tips

In general, this tool swages / crimps / squishes aluminium and copper - please note that it will NOT work on Stainless Steel fittings (often called or referred to as Hydraulically Swaged Fittings - these fittings logically require a hydraulic swaging tool to pressure weld the wire into the fittings...

Cutting

Wire is placed between the slots on either side of the tool and as the tool is closed, the wire is cut cleanly.

Swaging

Swaging it the act of reducing a oval shaped Ferrule into a tube. The Ferrule is used with a thimble to form a terminal loop in the wire. The Swaging tool is opened up and the top handle is held with the bottom handle resting on a bench or the floor. The Ferrule is then placed between the jaws so that closing of the tool will result in the ovoid shape being reduced to a tube.

Reference

Please consult the reference table included with the tool to determine which of the factory formed dies should be used in your application. You may also consult our swaging chart

Specifications

Model

HS-10FS

Length

254mm

Power Source

Manual

Color

Black, Green

Connection Style

Manual Swaging

Wire Diameter

0.5mm, 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 1.6mm

Material

Forged Steel

Dimensions

Hole 1 – suits wire ~0.5mm to 1.0mm (or Imperial x.xx)
Hole 2 – suits wire ~1.0mm to 1.5mm (or Imperial X/XX)
Hole 3 – suits wire ~1.5mm to 2.2mm (or Imperial x/xx)
