Swage Bolt Hex Adjuster LRMM BlackTech
Swage Bolt Hex Adjuster LRMM Kit suits a run of wire of 10 meters or more (hence the LR or Long Run) and its all BLACK. There are two tensioning points and two attachment points – both are are a female Hex Adjuster with a Terminal Swage Bolt.
Potentially Very Useful Related Items…
Description
Swage Bolt Hex Adjuster LRMM Kit suits a run of wire of 10 meters or more (hence the LR or Long Run) and its all BLACK. There are two tensioning points and two attachment points – both are are a female Hex Adjuster with a Terminal Swage Bolt. These attach directly through your Metal Posts (hence the MM or Metal to Metal).
Application:In this application, both ends are threaded through holes drilled in the end posts. One end of the run uses an M6 Hex adjuster with an M6 Swage Thread Terminal (for wire tensioning). The other end uses the same set up. The fittings must be either hydraulically swaged (we recommend our Heavy Duty Hydraulic Swager).

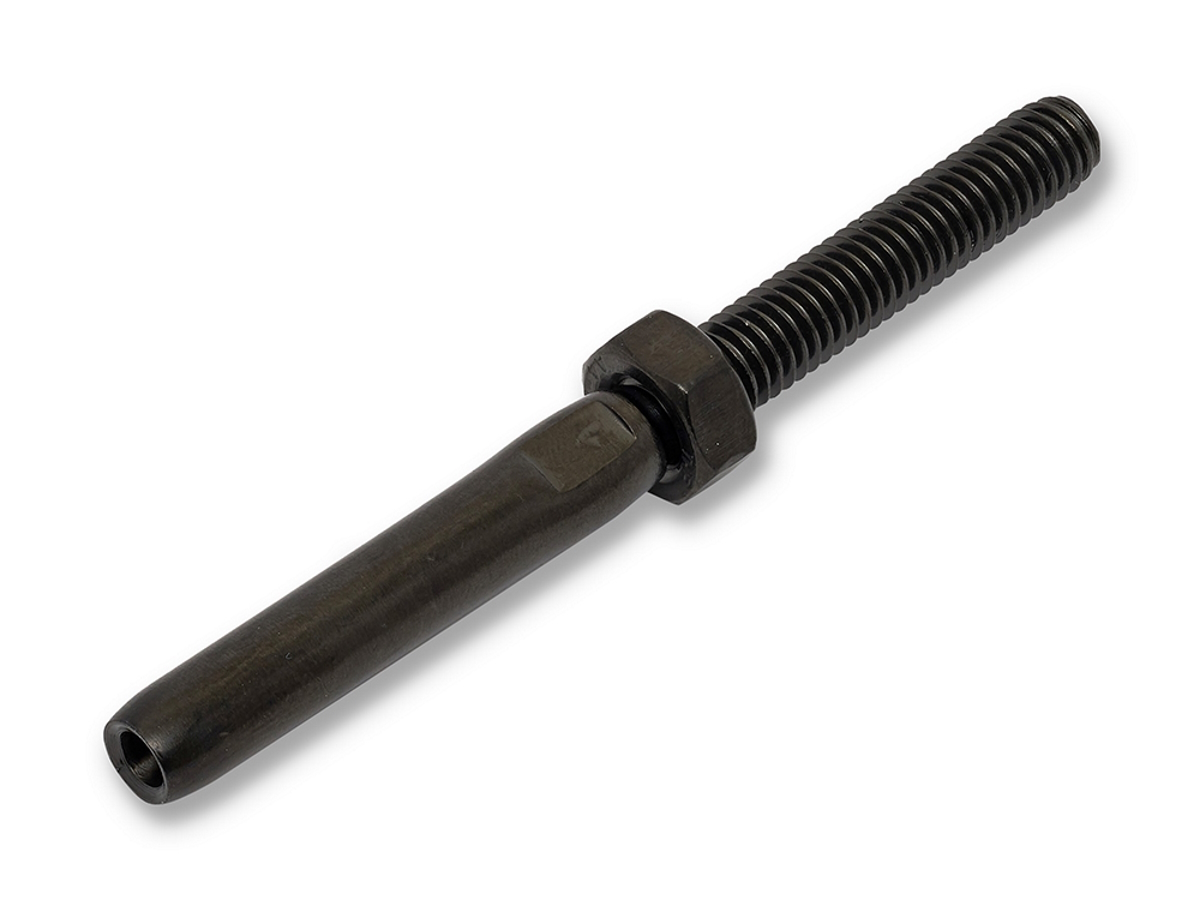

To attach the finished wire to your balustrade, simply cut the wire to length, swage on one M6 Swage Bolt Terminal and screw on a Hex Adjuster. Then thread the wire through the end post and feed the wire through any intervening posts (that have been pre-drilled with 8mm holes – note we recommend Grommets for the intervening posts), swage the fitting to the end of the wire and insert into the end post, screw on the Hex Adjuster, insert a hex key and twist to apply tension.
Contents:
- M6 Female Hex Adjuster G316 Stainless Steel (2 included)
- RHT G316 Stainless Steel Terminal Lag Bolts(2 included)
Specifications:
- Balustrade Kit for 1 Run of Wire
- Post Connections MM (Metal to Metal
- Recommended Run Length <10M (SR)
- Swaging Method: Hydraulic
- Suitable Wire Structure: 7×7, 1×19
- Suitable Diameter of Wire: 3.2mm
- Suitable Section Orientation: Flat, Stairs, (Angle needs BEVEL Washers… but you can do it…)
- Suits Wire Orientation in a Section: Horizontal, Vertical
