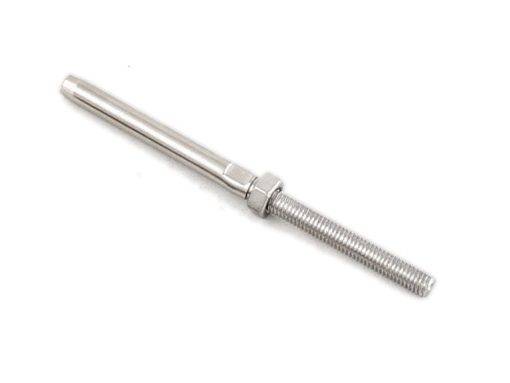

Swage Bolt M5 LHT 3.2mm G316 Stainless Steel TRADE PACKS

Description

Swage Bolt M5 LHT 3.2mm G316 Stainless Steel terminates 3.2mm Wire Rope. Alternatively, a Swage Bolt may be called a Stud Terminal. Additionally, it has a “handed” thread secured with a lock nut. The adjustable G316 Stainless Steel swaged end terminal fastens to M5 anchor points. As a result, swaged Terminals must match the size of the anchor points. Additionally, a Swage Bolt Terminal fits a single wire diameter. Adjustable fittings of a similar swaging style are used in concert with Swage Bolt Terminals. Usually, the wire diameter and thread pitch are part of the naming convention.

Usage: The Swage Bolt M5 LHT 3.2mm fastens into an M5 anchor hole in the frame or area that will contain the wire. Swage the bolt to attach the wire. To clarify, swaging is the process of uniformly crushing a fitting from a starting diameter to a finished diameter. Therefore, the chosen swaging tool must achieve a cold pressure weld. Logically, the requisite pressure and tool size varies with the size of the wire and the fitting. Consequently, we recommend Swaging G316 Stainless Steel fittings onto wire larger than 2.0mm with an adequate hydraulic swaging tool.

Quality: All Low Cost Wire products meet our strict ISO Quality Standards. Firstly, our products achieve the optimal balance between high tensile strength, fatigue resistance, abrasion resistance, and structural stability. Secondly, our long experience in the industry enables the design and manufacture of aesthetically beautiful and functional products. Finally, our products have a special treatment for bright and smooth surface of wire and cable to deliver a truly top-shelf, long lasting product that will look new for ages…

Dimensions: D = ~ 5.6mm T = ~ 5.0mm L = ~ 87.3mm L1 = ~38.7mm L2 = ~37.3mm
