Swivel Bolt LHT M6 G316 Stainless Steel TRADE PACKS

Description

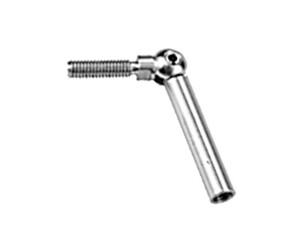

Swivel Bolt LHT M6 x 20mm G316 Stainless Steel has internal and external M6 threads. It works with a hydraulically swaged stainless steel swaged terminal bolts. Together, they are available to use with multiple diameters of stainless steel wire rope to fasten wire into a metal end post. Because of the swivel nature of the fitting, they are best used with vertical metal posts (that require an orthogonal bolt of nutsert connection). The swivels can also be combined with Timber Inserts for a use in Timber posts as well. Combined with left hand threaded terminal bolt, these fittings provide a streamlined professional look for both commercial and private use.

Usage: Swivel Bolt LHT M6 x 20mm fasten into the posts or uprights directly. They also serve as the fastening points that anchor a run of balustrading wire into a post. To make the job easier, try our ‘6mm Combination Drill Tap LHT’ Simply put, IT ROCKS – saves your wrists, speeds up the install and demonstrates a bit of ingenuity. We also have Nutserts (rivnuts or rivet nuts), nutsert installation tools, Timber Inserts and SuperTuff LHT drill taps that complement this type of fitting.

Quality: All Low Cost Wire products meet our strict ISO Quality Standards. Firstly, our products achieve the optimal balance between high tensile strength, fatigue resistance, abrasion resistance, and structural stability. Secondly, our long experience in the industry enables the design and manufacture of aesthetically beautiful and functional products. Finally, our products have a special treatment for bright and smooth surface of wire and cable to deliver a truly top-shelf, long lasting product that will look new for ages…

Dimensions: D = ~ 8.0mm; D1 = ~ 12.0mm; L = ~ 20.0mm; L1 = ~ 40.0mm; L2 = ~ 50.0mm
