Vertical 4.0mm Stair Section Wire Dropper G316 Stainless Steel

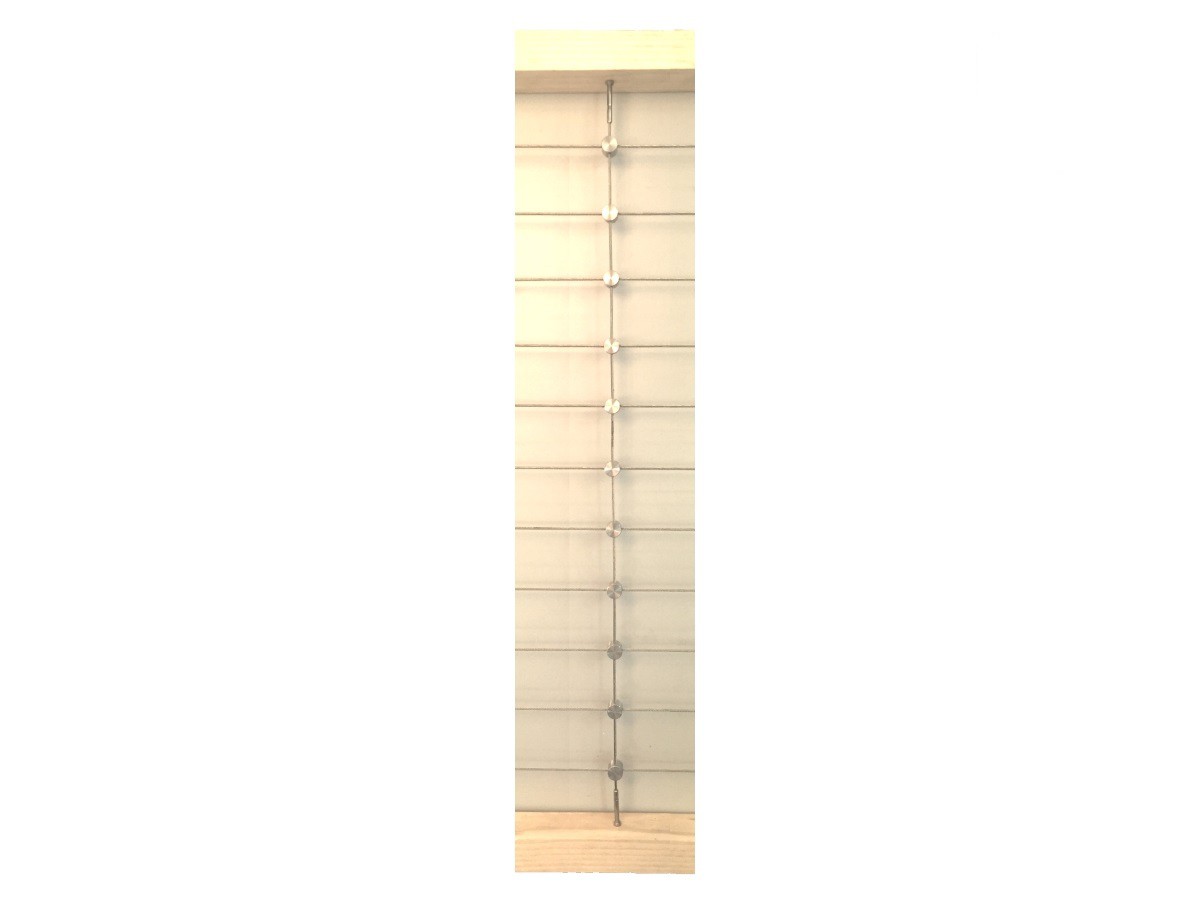

A Floating Vertical Wire can function as a ‘dropper’ or an intermediate post in a span that has deflection problems or needs a conventional Dropper. Versions of the vertical wire can also be used in landscaping as well – in either a vertical (flat section) or diagonal (stair section) orientation – attached to either or both ends or ‘floating’.
Description
A Vertical 4.0mm Stair Section Wire can function as a ‘dropper’ or an intermediate post in a span that is longer than 1.5M (and is therefore subject to excessive deflection EVEN IF the wires are spaced at 80mm apart). This type of assembly can also be used in landscaping in either as a Vertical Wire Dropper (this listing) or as a Diagonal Wire Support (Diagonal Wire Support listing) For example – normally a Stair section of balustrade will use 11 wires – so you would use a kit with 11 (horizontal) wires, whereas a stair section of balustrade will use 10 wires… etc.
Usage: The cross wire clamps are installed at every cross over point to secure the vertical wire to the horizontals. And the rod ends are installed on the ends of the vertical wire – cut to such a length that the finished end of the wire just brushes the underside of the top rail and the surface of the deck.
Quality: All Low Cost Wire products meet our strict ISO Quality Standards. Firstly, our products achieve the optimal balance between high tensile strength, fatigue resistance, abrasion resistance, and structural stability. Secondly, our long experience in the industry enables the design and manufacture of aesthetically beautiful and functional products. Finally, our products have a special treatment for bright and smooth surface of wire and cable to deliver a truly top-shelf, long lasting product that will look new for ages…
Additional information
Size | Links-2-Wires, Links-3-Wires, Links-4-Wires, Links-5-Wires, Links-6-Wires, Links-7-Wires, Links-8-Wires, Links-9-Wires, Links-10-Wires, Links-11-Wires, Links-12-Wires, Links-13-Wires, Links-14-Wires, Links-15-Wires |
---|---|
Wire Diameter | 2.4mm, 2.5mm, 3.0mm, 3.2mm, 3.5mm, 4.0mm |
Connection Style | Mechanical/Swageless |
Material | Stainless Steel |
Grade | 316 / A4 |
Orientation | Stair Section – Angled |
Brand | Low Cost Wire |
Thread | M12x1.75 |
Color | Bright |
Coating | None |
System | Metric Coarse |
Pack Size | Single |
