3.2mm Lag Screw 1×19 Full Deck Kit
$1.38 – $119.19 Inc GST
Lag Screw 1×19 Full Deck Kit groups tools and fittings required for fitting RHT and LHT Lag Screws with 1×19 Stainless Steel Wire. This kit provides the basics components
Description
Lag Screw 1×19 Full Deck Kit groups tools and fittings required for fitting RHT and LHT Lag Screws with 1×19 Stainless Steel Wire. This kit provides the basics components – Basically you need:
- Wire (of some length) which sort of depends on the project.
- Lag Screws (1 LHT and 1 RHT for each wire). These fasten to the wire to itself with a cold forging (swaging) process using hydraulic pressure,
- Cutter which simply cuts the wire
- Swager (swaging or pressure welding tool) These are available in a hydraulic form with battery or armstrong power, and a

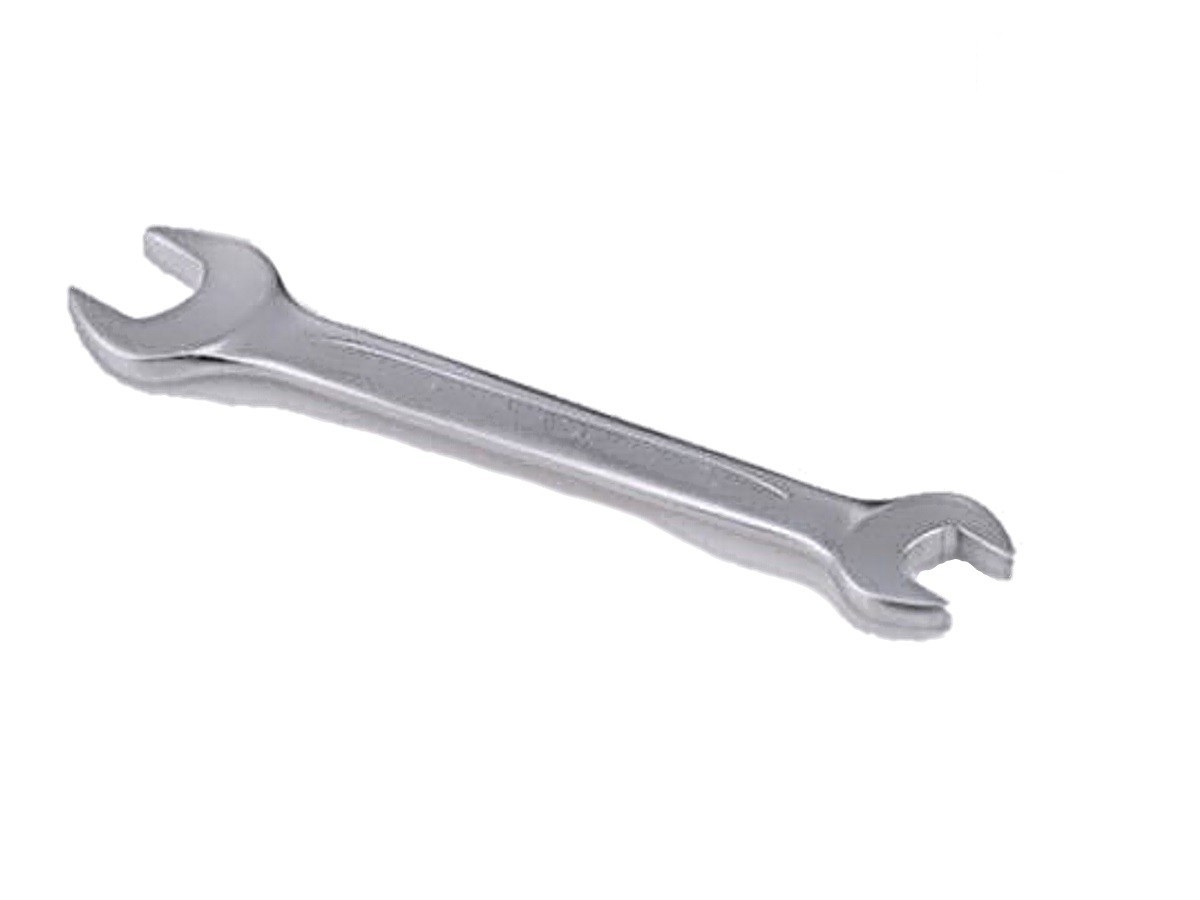

- Installation Tools pair of open ended spanners to allow the wires to be ‘rotated’
Usage: Using the Lag Screw 1×19 Full Deck Kit is easy. Simply cut the wires to length (30mm less than the inside-to-inside post measurement), slip one end into a LHT Lag Swage Screw and swage it, slip the other end of the wire into a RHT Lag Swage Screw and swage it. Drill 4mm pilot holes for the anchor posts and 8mm holes for any intermediate posts. Slide the wire into place and rotate it – both ends at the same time – so this makes it a 2 person install.
Quality: All Low Cost Wire products meet our strict ISO Quality Standards. Firstly, our products achieve the optimal balance between high tensile strength, fatigue resistance, abrasion resistance, and structural stability. Secondly, our long experience in the industry enables the design and manufacture of aesthetically beautiful and functional products. Finally, our products have a special treatment for bright and smooth surface of wire and cable to deliver a truly top-shelf, long lasting product that will look new for ages…
Wire Use Kits are also available for different sizes of Wire Rope.
