Jaw Swage Rigging Screw Short Screw Eye LRTT

Description

Jaw Swage Rigging Screw Short Screw Eye LRTT Kit suits a run of 3.2mm wire of 10 meters or more (hence the LR or Long Run). There is a Jaw Swage Rigging Screws to provide a single tensioning point. There are two 6x40mm Lag Eye Screws that form two attachment points. Ultimately, the eye bolts/screws secure both ends of the wire.These attach directly into softwood or hardwood timber posts (hence the TT or Timber to Timber). Optional versions of this Kit work with 2.4mm, 3.2mm, and 4.0mm Wire Rope.

Application
We recommend cutting, building, installing (a single wire first) and reviewing your installation to ensure that it looks the way YOU want it to look once its complete.

Option 1 – Build in Place First step, secure the eye bolts/screws. Subsequently, install the wire through the intermediate posts and ‘cut to length’. Secondly, drill the intermediate posts out to at least 4mm prior to swaging in place. Thirdly, before swaging, please expand all of the tensioners. Finally, this preserves the maximum adjust-ability.

Option 2 – Pre Build Alternately, you build the wire into the Jaw Swage Rigging Screw Short Screw Eye LRTT Kit before you install it. Consequently the wire length is the ‘inside to inside’ post measurement less a fixed amount. Interestingly, this fixed amount is the distance ‘taken up’ by the fittings. Finally, the kit installs and adjusts properly with the correct length adjustment.

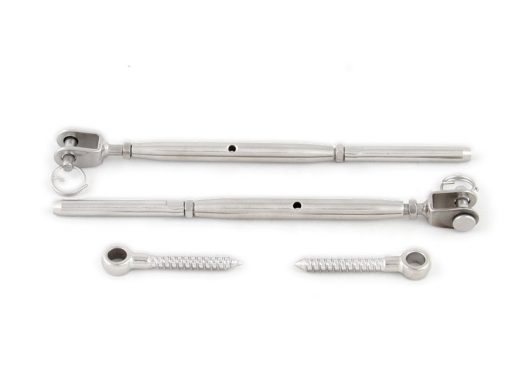

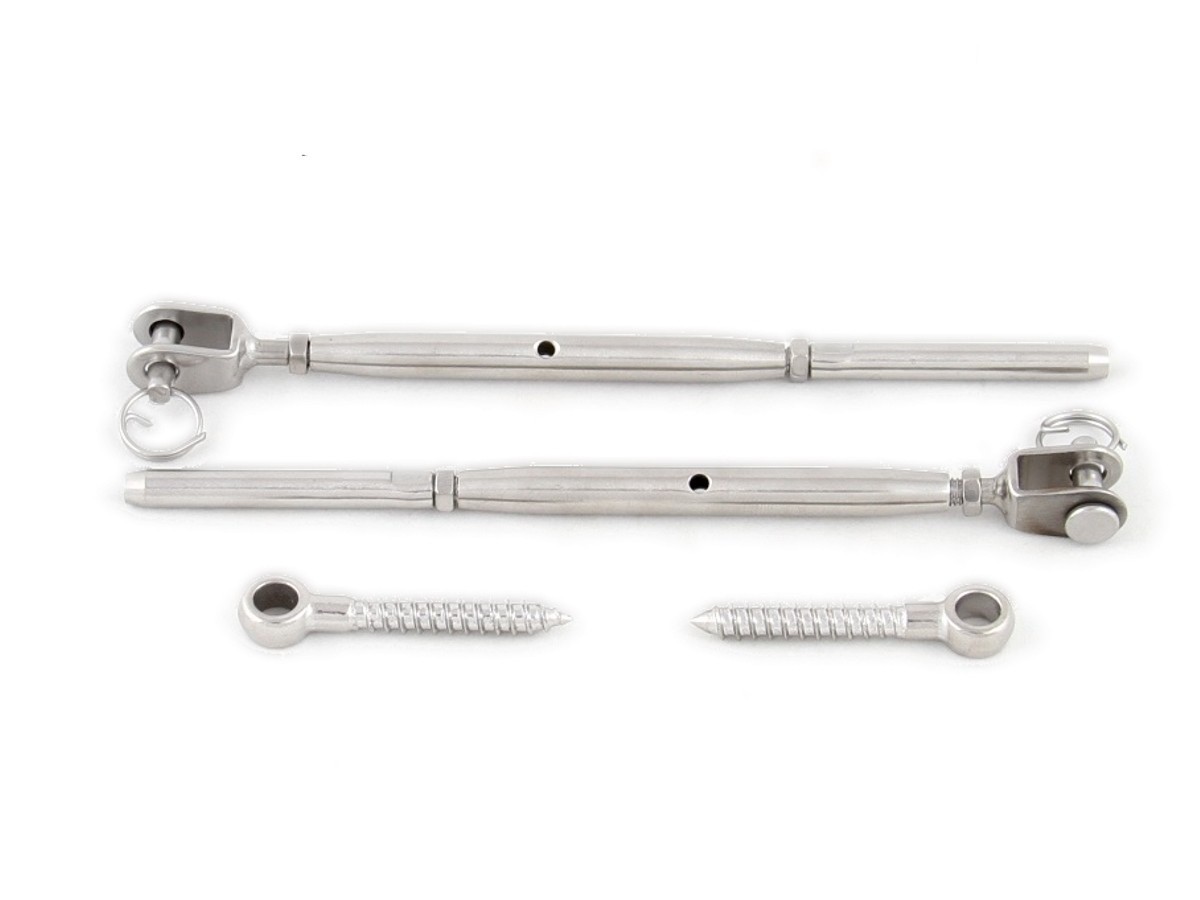

Contents

• Jaw Swage Rigging Screw Stainless Steel 316 Marine Grade (2 included)
• 6mm x 50mm Lag Eye Screws Stainless Steel 316 Marine Grade (2 included)

Characteristics

• Balustrade Kit for 1 Runs/Wire
• Post Connections TT (Timber to Timber
• Recommended Run Length >=10M (LR)
• Swaging Method: Hydraulic
• Wire Structure: 7×7, 1×19
• Diameter of Wire: 2.4mm, 3.2mm, 4.0mm
• Section Orientation: Flat, Stairs, Angle
• Wire Orientation in a Section: Horizontal, Vertical
