Jaw Swage Rigging Screw & Short Screw Eye Kit SRTT
Sale!
Jaw Swage Rigging Screw & Short Screw Eye Kit SRTT
Jaw Swage Rigging Screw & Short Screw Eye Kit SRTT Assembled Diagram
Fork Terminal
2 Pack of 6mm x 50mm Lag Eye Screw (Short) for TImber
Jaw Swage Rigging Screw

Jaw Swage Rigging Screw Fork Terminal Short Screw Eye SRTT

Jaw Swage Rigging Screw Fork Terminal Short Screw Eye SRTT Kit is a set of components that enable the deployment of tensioned wire rope. This kit suits a run/length of wire of up to 10 meters (hence the SR or Short Run). The Jaw Swage Rigging Screw provides tensioning at one end of the wire. Consequently, this makes only one end adjustable. The Fork Terminal forms the attachment at the other end of the wire. Ultimately, the  short Lag Eye Screws at both ends form the two attachment points for the wire. These screws attach directly into a timber posts (hence the TT or Timber to Timber). Versions of this Kit work with 2.4mm, 3.2mm, 4.0mm and 5.0mm Wire Rope.

SKU: 1476 Category:

Description

Jaw Swage Rigging Screw Fork Terminal Short Screw Eye SRTT Wire Balustrade Kit is a set of components that enable the deployment of tensioned wire rope. This kit suits a run/length of wire of up to 10 meters (hence the SR or Short Run). The Jaw Swage Rigging Screw provides tensioning at one end of the wire. Consequently, this makes only one end adjustable. The Fork Terminal forms the attachment at the other end of the wire. Ultimately, the short Lag Eye Screws at both ends form the two attachment points for the wire. These screws attach directly into a timber post (hence the TT or Timber to Timber). Versions of this Kit work with 2.5mm, 3.2mm, 4.0mm and 5.0mm Wire Rope.

What is this?

  • A Kit of Hydraulically swaged simplex Marine Grade G316 Stainless Steel fittings that enable the deployment of a single tensioned wire rope into or onto a timber substrate

What are the uses?

  • The Kit components install a wire in a horizontal (flat) or angled (stairs or ramp) orientation
  • A tensioned wire may be used for landscaping, or fencing, or wire balustrade construction

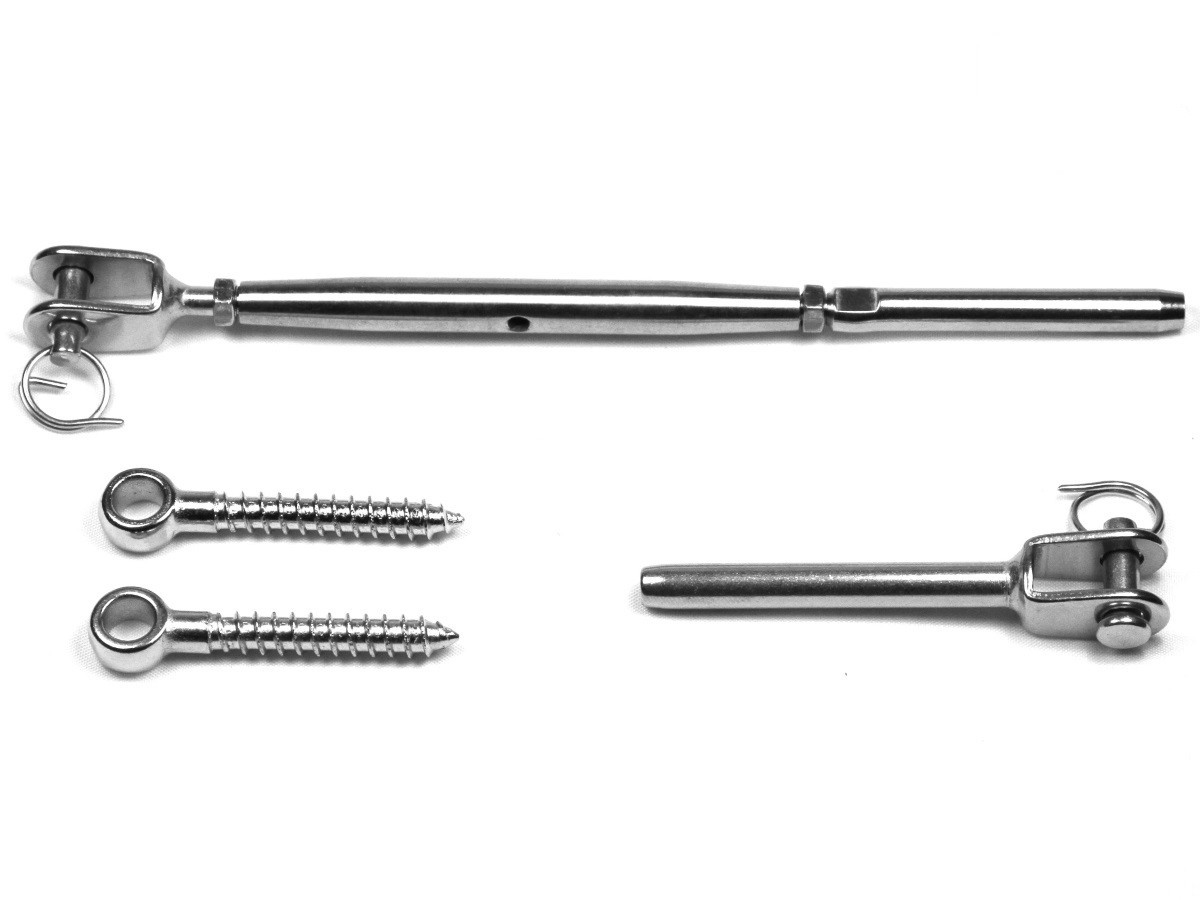

What is included?

  • Lag Eye Screw Stainless Steel 316 Marine Grade (2 included)
  • Jaw/Swage Rigging Screw G316 Stainless Steel Marine Grade (1 included)
  • Fork Terminal (1 included)

What are the features?

  • Balustrade Kit for 1 Runs/Wire
  • Post Connections TT (Timber to Timber
  • Recommended Run Length <10M (SR)
  • Swaging Method: Hydraulic
  • Wire Structure: 7×7, 1×19
  • Diameter of Wire: 2.4mm, 3.2mm, 4.0mm, 5.0mm
  • Section Orientation: Flat, Stairs, Angle
  • Wire Orientation in a Section: Horizontal, Vertical

What works with this product?

  • 1×19 G316 Stainless Steel Wire rope is the construction that works best with these components
  • Compression with a Hydraulic Swaging Tool is required to connect (pressure weld) the fittings to the wire rope

What to avoid with this product?

  • Do not attempt to attach these fittings to the wire rope with manual crimping tools.
  • The lag screw eyes are only for use with timber and do not work with a metal substrate (aluminium or steel)
  • Exposure to common steel or aluminium fasteners (bolts, screws, or rivets) may cause corrosion and or “Tea Staining”.
