Swage Bolt RHT LHT SRMM

$3.98$5.30 Inc GST

Sale!

Swage Bolt RHT LHT SRMM

$3.98$5.30 Inc GST

This kit suits a run of wire of 10 meters or less(hence the SR or Short Run). There is no turnbuckle. Attachments are two M6x1.0 x 40mm (RHT & LHT) Swage Bolts to attach directly into Metal posts (hence the MM or Metal to Metal).

Clear
SKU: 2483 Categories: ,

Product Description

Swage Bolt RHT LHT SRMM Kit suits a short run of  wire of 10 meters or less (SR = Short Run). Interestingly, this Quick-Fit Metal System is the most streamlined wire balustrade systems available on the market.  Additionally, all expertly manufactured components use high quality materials.  Consequently, our finish polished fittings are extremely durable. The Right Hand Thread (RHT) and Left Hand Thread (LHT) Terminal Swage Bolts form two attachment points. Together, the swage bolts as a ‘turnbuckle’ when attached to a wire. Finally, the studs screw directly into M6x1.0 threaded holes in Metal posts (MM = Metal to Metal).

****

Usage: Installation is easy. Firstly, the  Swage Bolt RHT LHT SRMM run has a RHT Swage Bolt swaged to the wire. This attaches to the first threaded metal post or wall.  Secondly, the  LHT Swage Bolt is swaged to the wire’s other end. This then fastens to the second post or wall. Therefore, swage bolts attach to threads drilled and tapped into the metal.  Thirdly, nutserts optionally replace drilled and tapped holes in the metal structure. Wire may be installed through the intermediate posts and ‘cut to length’. Please make sure you cut the wire beforehand. It is VERY difficult to ‘cut to size’ once the Terminal Swage Bolts are installed. Drill the intermediate posts out to at least 4mm prior to swaging in place. Installation of this kit requires 2 people.

****

Contents

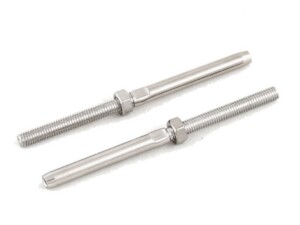

  • M6 x 1.0 X 40mm RHT Swage Bolt Stainless Steel 316 Marine Grade (1 included)
  • M6 x 1.0 X 40mm LHT Swage Bolt Stainless Steel 316 Marine Grade (1 included)

****

Characteristics

  • Balustrade Kit for 1 Runs/Wire
  • Post Connections  MM (Metal to Metal)
  • Recommended Run Length <10M (SR)
  • Swaging Method:  Hydraulic
  • Wire Structure: 7×7, 1×19
  • Diameter of Wire: 3.2mm, 4.0mm
  • Section Orientation: Flat, Stairs, Angle
  • Wire Orientation in a Section: Horizontal, Vertical

Usage

Wires are  installed in straight sections – through intermediate posts and ‘cut to length’ before swaging. Drill the intermediate posts out to at least 4mm prior to swaging “in place” or 8mm if swaging is done outside of the structure.

Optionally, you can use Nutserts (LHT and RHT) installed with a Nutsert tool for a more secure connection into Metal Posts. Elsewhere we offer this kit with Timber Inserts (LHT and RHT) that allow it to be installed with an Allen key for a secure connection into Timber Posts.  As well, these studs can be used with swivels for use on stairs or ramps. We offer combination Drill-Taps with the correct LH and RH thread

Application

Wire may be installed through the intermediate posts and 'cut to length'.  Drill the intermediate posts out to at least 4mm prior to swaging in place. Before swaging, please expand all of the tensioners so that the maximum adjust-ability is available.

Alternately, if you build the wire before you install it, then the length of a wire run is determined by the 'inside to inside' post measurement less a fixed amount which represents the distance between the attachment posts 'taken up' by the fittings when installed and adjusted properly. We recommend cutting, building, installing and reviewing your installation to ensure that it looks the way YOU want it to look once its complete. In application, the 50mm length is ideal for fastening to a common corner post as the screws are very robust/strong (use a Tapped hole) and because of the length, they will NOT collide in a corner post as an ‘adjustable’ length will protrude from the post.

Alternately, if you build the wire before you install it, then the length of a wire run is determined by the 'inside to inside' post measurement less a fixed amount which represents the distance between the attachment posts 'taken up' by the fittings when installed and adjusted properly.  We recommend cutting, building, installing and reviewing your installation to ensure that it looks the way YOU want it to look once its complete.

Specifications

Wire Diameter

3.2mm, 4.0mm

Material

Stainless Steel

Grade

AISI G316 (Marine)

Run Length

Up to 10M (SR)

Connection Style

Hydraulic Swaging

Tension Style

Stud – Bolt Basic

Attachment Style

Machine Stud

Attachment Substrate

Metal
