Eye Eye Turnbuckle Swage Thimble Saddle Rivet SRMM

Click for the Long Run version of this Kit LRMM

Potentially Very Useful Related Items…

Stainless Steel Wire Rope Coil

Manual Swaging Tool

Hex Nuts

Trusted Tradies

SKU: 3569 Categories: ,

Description

Eye Eye Turnbuckle Swages Thimbles Saddles Rivets SRMM Kits is configured to suit a single short run (SR – under 10M) of stainless steel wire rope. The short run configuration uses an Eye Eye Turnbuckles (at one end) to provide a single tensioning points. There are two Eye Straps (Saddles) that attach directly to end posts, secured with rivets. The strength of the fittings can be chosen (4mm / M4 = light duty; 5mm / M5 = recommended; 6mm / M6 = heavy duty) along with sizing for the applicable wire rope (2.0mm & 2.4mm = light duty; 3.2mm = recommended; 4.0mm = heavy duty.

Application

The Eye Eye Turnbuckle Swages & Saddles with Rivets SRMM Kit has an eye eye turnbuckle at one end, attached to the wire using a thimble and a swage, which forms a terminal loop. The eye eye turnbuckle then attaches to a saddle, which in turn attaches to an end post.  The other end of the run has another terminal loop, formed by another swage and thimble, but has no turnbuckle.

Wire may be installed through the intermediate posts and ‘cut to length’.  Drill the intermediate posts out to at least 4mm prior to swaging in place. Before swaging, please expand all of the tensioners so that the maximum adjust-ability is available.

Alternately, if you build the wire before you install it, then the length of a wire run is determined by the ‘inside to inside’ post measurement, minus a fixed amount which represents the distance between the attachment posts ‘taken up’ by the fittings once installed and adjusted properly.

This number represents the amount we would cut off in the factory to custom build wires with this kit for a given length. We recommend cutting, building, installing and reviewing your installation to ensure that it looks the way YOU want it to look once its complete.

Contents

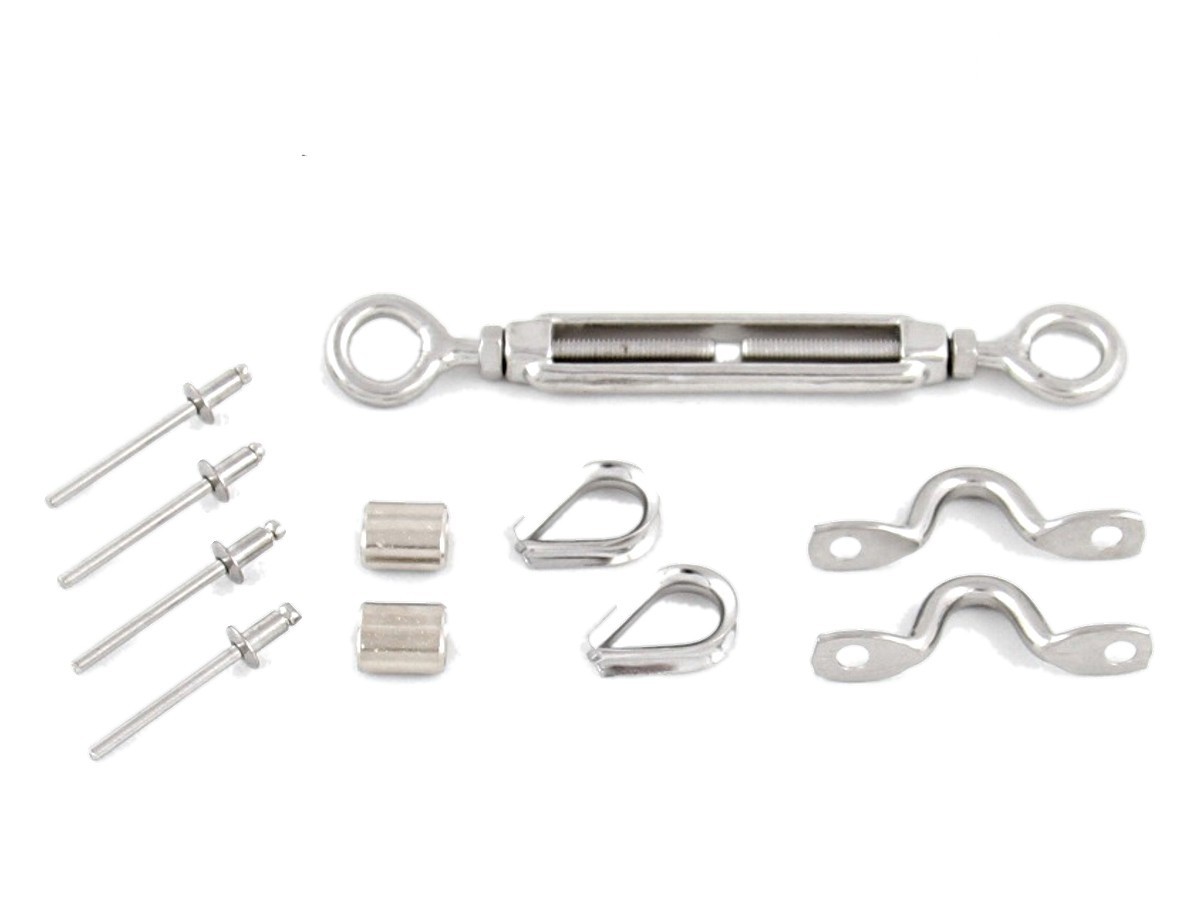

  • 1 – Eye Eye Open Turnbuckle Stainless Steel 316 Marine Grade
  • 2 – Nickel Plated Copper Ferrules (swages / crimps) Marine Grade
  • 2 – Thimbles Stainless Steel 316 Marine Grade
  • 2 – Saddles (eye straps) Stainless Steel 316 Marine Grade
  • 4 – Rivets Stainless Steel 304 Grade

Characteristics

  • Balustrade Kit for 1 Runs/Wire
  • Post Connections  MM (Metal to Metal)
  • Recommended Run Length <10M (SR)
  • Swaging Method:  Mechanical
  • Wire Structure: 7×7, 7×19
  • Diameter of Wire: 2.0mm, 2.4mm; 3.2mm; 4.0mm
  • Section Orientation: Flat, Stairs, Angle
  • Wire Orientation in a Section: Horizontal, Vertical
