Hook Eye Turnbuckle Thimble Swage Short Screw Eye SRTT

$5.31$5.88 Includes GST

Hook Eye Turnbuckle Thimble Swage Short Screw Eye SRTT suits a run of wire of 10 meters or less (hence the SR or Short Run). There a single tensioning point and two attachment points. attachments are two 6mmx50mm (Short) Lag Eye Screws. These attach directly into softwood or hardwood timber posts (hence the TT or Timber to Timber).

Clear
SKU: 2938 Categories: , , , , ,

Hook Eye Turnbuckle Thimble Swage Short Screw Eye SRTT

Hook Eye Turnbuckle Thimble Swage Short Screw Eye SRTT kit suits a run of  wire, 10 meters or less in length (hence SR or Short Run). There a single tensioning point and two attachment points. attachments are two 6mmx50mm (Short) Lag Eye Screws. These attach directly into softwood or hardwood timber posts (hence the TT or Timber to Timber).

Application

The first end of the run has a Eye / Hook Open Turnbuckle  (for wire tensioning) swaged to the wire. The hook of this attaches to the first 50mm Screw Eye. The other Eye attaches to the wire using a terminal loop formed with a ferrule and a swage. The Screw Eye is fastens to a timber post or wall. The second end uses a terminal loop formed with a ferrule and a swage to attach to the second 50mm Screw Eye which is fastened to the second post or wall.

Wire may be installed through the intermediate posts and ‘cut to length’. Please make sure you expand the turnbuckles before measurement and drill the intermediate posts out to at least 4mm prior to swaging in place. Alternately, if you build the wire before you install it, then the length of a wire run is determined by the ‘inside to inside’ post measurement less a fixed amount which represents the distance between the attachment posts ‘taken up’ by the fittings when installed and adjusted properly.

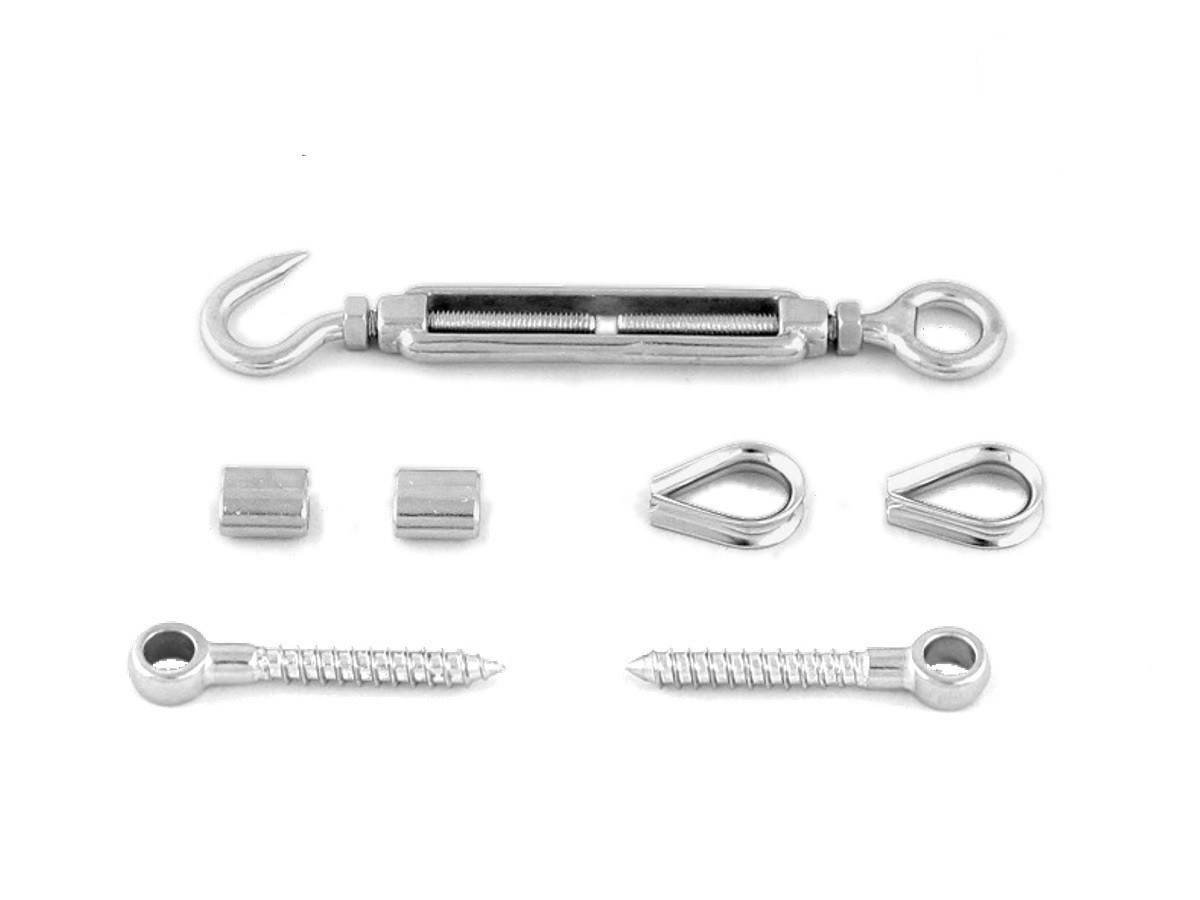

Contents

  • 2 – 6mm X 50mm Lag Eye Screw Stainless Steel 316 Marine Grade
  • 1 – Hook Eye Open Turnbuckle G316 Stainless Steel Marine Grade
  • 2 – Nickel Coated Copper Ferrules
  • 2 – G316 Stainless Steel Thimbles

Characteristics

  • Balustrade Kit for 1 Runs/Wire
  • Post Connections  TT (Timber to Timber)
  • Recommended Run Length <10M (SR)
  • Swaging Method:  Manual
  • Wire Structure: 7×7, 7×19
  • Diameter of Wire: 1.6mm, 2.0mm, 2.4mm, 3.2mm, 4.0mm
  • Section Orientation: Flat, Stairs, Angle
  • Wire Orientation in a Section: Horizontal, Vertical

Additional Information

Weight 0.089 kg
Color

Silver

Grade

AISI G316 (Marine)

Coating

None

Wire Structure

7×19, 7×7

Wire Diameter

1.6mm, 2.0mm, 2.4mm, 3.2mm, 4.0mm

Attachment Style

Eye Screw

Attachment Substrate

TImber

Tension Style

Turnbuckle – Eye/Hook Open

Thread

M4x0.7, M5x0.8, M6x1.0
