Jaw Jaw Rigging Screw Thimbles Swages Saddles Rivets SRMM kits include fittings suitable for one run of Stainless Steel Wire rope, under 10 meters in length, as it features a single tensioning point. There are enough fittings for a single wire run. The kit can be configured for different strengths (sizes) of wire, and can be customised to suit any end posts by swapping around the fasteners – just ask us.

Jaw Jaw Rigging Screw Thimbles Swages Saddles Rivets SRMM

These Jaw Jaw Rigging Screw Thimbles Swages Saddles Rivetss SRMM kits are configured to suit a single short run (SR – less than 10M) of stainless steel wire rope. The short run configuration uses a jaw jaw rigging screw at only one end, providing a single tensioning point. There are two Eye Straps (Saddles) that attach directly to end posts, secured with fasteners (sold separate). The kit can be adjusted depending on the sizing for the applicable wire rope.

Application

The Jaw Jaw Rigging Screw Thimbles Swages Saddles Rivets SRMM kit has a jaw jaw rigging screw at one end, attached to the wire using a thimble and a swage, which forms a terminal loop. The jaw jaw rigging screw then attaches to a saddle, which in turn attaches to an end post. The other end of the run has another terminal loop, formed by another swage and thimble, but has no turnbuckle.

Wire may be installed through the intermediate posts and ‘cut to length’.  Drill the intermediate posts out to at least 4mm prior to swaging in place. Before swaging, please expand all of the tensioners so that the maximum adjust-ability is available.  If you have intermediate posts that are metal – but are NOT stainless steel – please use grommets (angled grommets for the stairs and standard grommets for hollow section posts) and these require an 8mm hole.

Alternately, if you build the wire before you install it, then the length of a wire run is determined by the ‘inside to inside’ post measurement, minus a fixed amount which represents the distance between the attachment posts ‘taken up’ by the fittings once installed and adjusted properly.  This number represents the amount we would cut off in the factory to custom build wires with this kit for a given length. We recommend cutting, building, installing and reviewing your installation to ensure that it looks the way YOU want it to look once its complete.

Contents

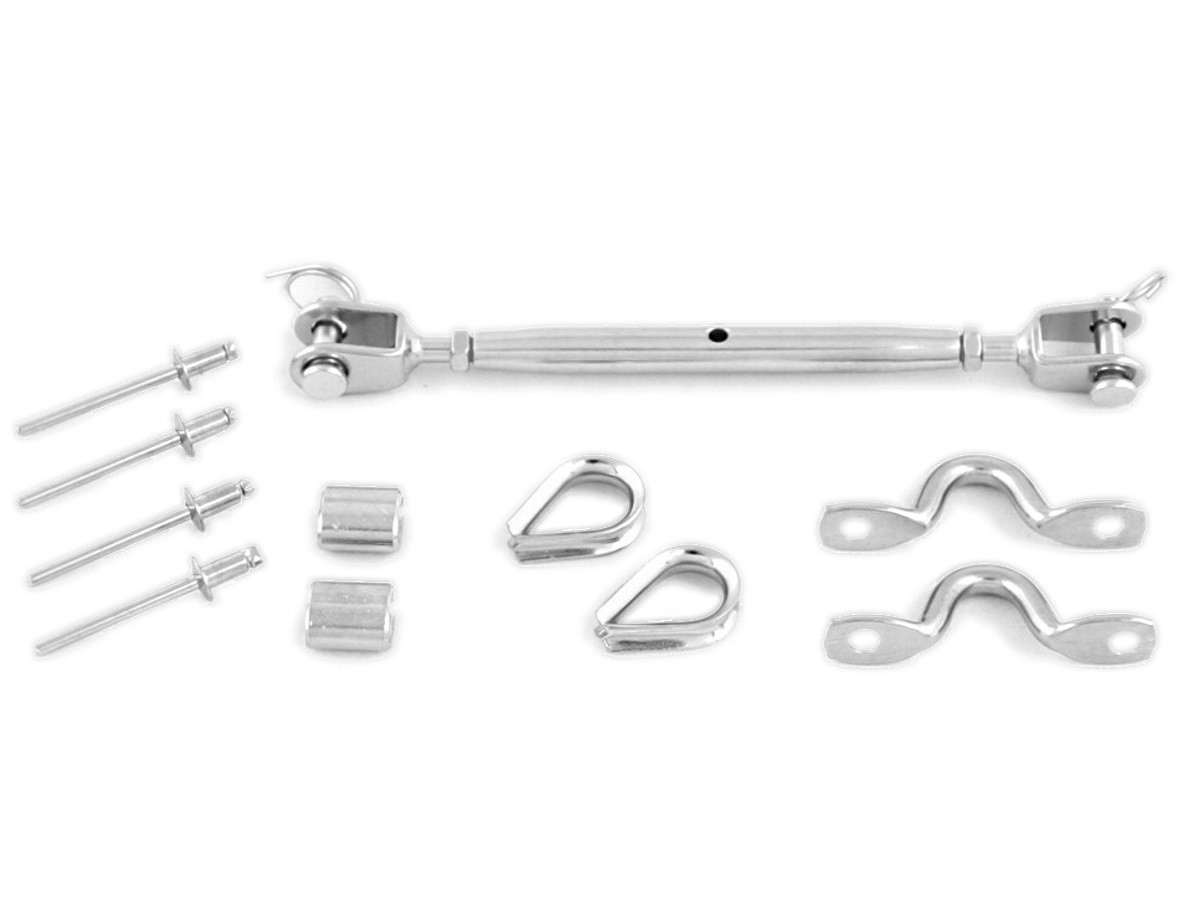

  • 1 – Jaw Jaw Rigging Screw Closed Turnbuckle Stainless Steel 316 Marine Grade
  • 2 – Nickel Plated Copper Ferrules (swages / crimps) Marine Grade
  • 2 – Thimbles Stainless Steel 316 Marine Grade
  • 2 – Saddles (eye straps) Stainless Steel 316 Marine Grade
  • 4 – Truss Rivets

Characteristics

  • Balustrade Kit for 1 Runs/Wire
  • Post Connections: based on fasteners MM (Metal to Metal)
  • Recommended Run Length <10M (SR)
  • Swaging Method:  Mechanical
  • Wire Structure: 7×7, 7×19
  • Diameter of Wire: 2.0mm; 2.4mm; 3.2mm; 4.0mm
  • Section Orientation: Flat, Stairs, Angle
  • Wire Orientation in a Section: Horizontal, Vertical

Specifications

Wire Diameter

2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm

Run Length

Up to 10M (SR)

Connection Style

Manual Swaging

Tension Style

Turnbuckle – Jaw/Jaw Closed

Attachment Style

Saddle

Attachment Substrate

TImber
