Jaw Swage Rigging Screw Fork Terminal Saddle Screw Rivet SRTM

Potentially Very Useful Related Items…

Stainless Steel Wire Rope Coil

Hydraulic Swaging Tool

Hex Nuts

Trusted Tradies

SKU: 13050 Category:

Description

Jaw Swage Rigging Screw Fork Terminal Saddles Screws Rivets SRTM

Jaw Swage Rigging Screw Fork Terminal Saddles Screws Rivets SRTM Kit suits a run of wire of 10 meters or less (hence the SR or Short Run). There is a Jaw Swage Rigging Screws to provide a single tensioning point. There are two 5mm Saddles secured by Stainless Steel self tapping countersunk wood screws that form two attachment points on one end with a Timber Post and  two Saddles secured by Stainless Steel Rivets that form two other attachment points on a metal post. These attach directly into a softwood or hardwood timber post on one end and a metal post on the other. (hence the TM or Timber to Metal). There are optional version of this Kit that work with 2.4mm Wire Rope,  3.2mm Wire Rope, and 4.0mm Wire Rope

Application

One end of the run has a Jaw Swage Rigging Screws swaged to the wire which is adjustable.  The other end of the wire has a Fork Terminal swaged onto it. The attachment points are 5mm saddles which are secured to timber posts or walls using counter sunk self tapping screws.  The Jaw Swage Rigging Screws are simply attached to the saddles.

Wire may be installed through the intermediate posts and ‘cut to length’.  Drill the intermediate posts out to at least 4mm prior to swaging in place. Before swaging, please expand all of the tensioners so that the maximum adjust-ability is available.

Alternately, if you build the wire before you install it, then the length of a wire run is determined by the ‘inside to inside’ post measurement less a fixed amount which represents the distance between the attachment posts ‘taken up’ by the fittings when installed and adjusted properly.  This number represents the amount we would cut off in the factory to custom build wires with this kit for a given length. We recommend cutting, building, installing and reviewing your installation to ensure that it looks the way YOU want it to look once its complete.

Contents

  • 1 – Jaw Swage Rigging Screw Stainless Steel 316 Marine Grade

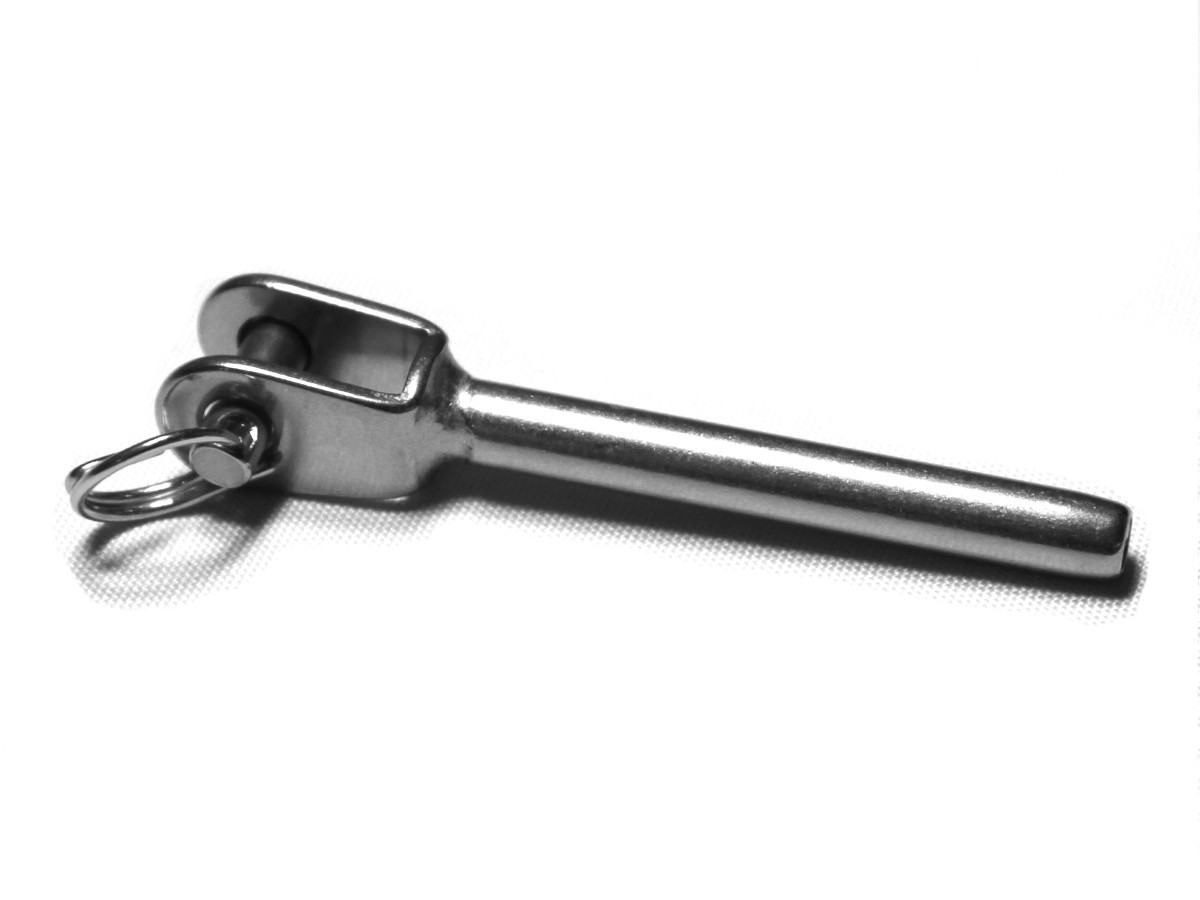

  • 1 – Fork Terminal Stainless Steel 316 Marine Grade
  • 2 – Saddles (eye straps) Stainless Steel 316 Marine Grade
  • 2 – Counter Sunk Self Tapping Stainless Steel 304 Marine Grade
  • 2 – Truss Rivets Stainless Steel 304 Marine Grade

Characteristics

  • Balustrade Kit for 1 Runs/Wire
  • Post Connections  TM (Timber to Metal)
  • Recommended Run Length <=10M (SR)
  • Swaging Method:  Hydraulic
  • Wire Structure: 7×7, 1×19
  • Diameter of Wire: 3.2mm, 2.4mm, 4.0mm
  • Section Orientation: Flat, Stairs, Angle
  • Wire Orientation in a Section: Horizontal, Vertical
