Round Aluminium Swages – ALL SIZES

$0.26$175.95 Inc GST

Cable Stop fittings can be used to fix single steel (NOT Stainless) wire rope cable. Cable Stop fittings are made from  Aluminium and they are designed to work with High and Medium Flexibility Galvanised Steel Wire Rope.  Each size of Swage is designed to work with a specific size of wire.

Click here for recommended Swaging Tool

Clear
SKU: 17986 Categories: ,

Product Description

Round Aluminium Swages

Round Aluminium Swages can be used to fix to single wire ropes.  Our Stopper fittings are called a wide variety of things including Clamp single wire stopper Aluminum Swage Sleeves, also known as Round Ferrules. Basically, they are bits of Aluminum that are designed to pass over the wire rope and be hand swaged (manually or hydraulically) on the wire to act as a ‘stop’ point.  In practice, this is putting a manually swaged terminal on the wire.

Often these fittings are used in winch or winding set ups with various types of lifting or control cables.

Aluminium is best used on mild steel, galvanized steel, high tensile steel – NOT stainless steel – wire or wire rope as aluminum and stainless steel cause a dissimilar alloys interaction (galvanic reaction).

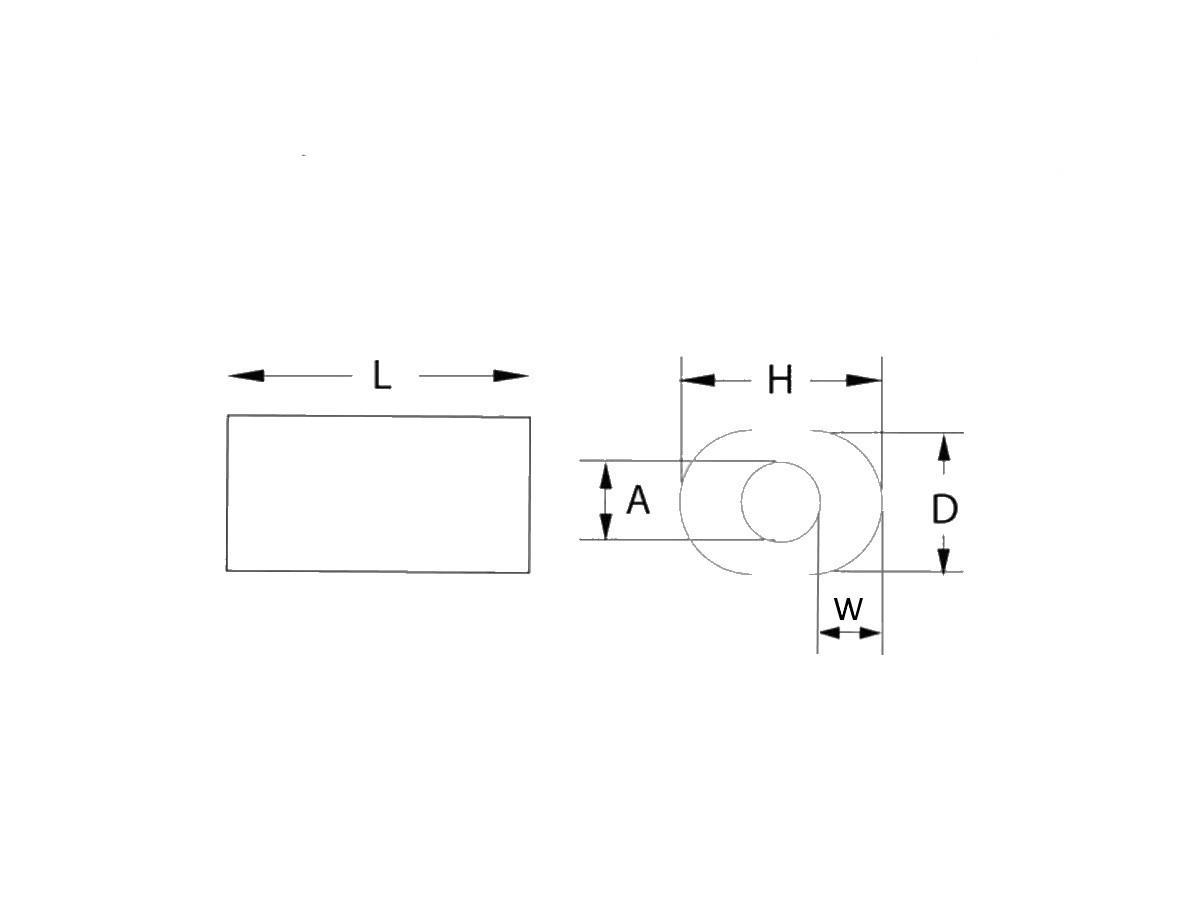

5.0mm Dimensions: L = ~9.0mm H = ~8.5mm  D = ~8.5mm A = ~ 5.5mm W = ~ (H-A)/2

4.0mm Dimensions: L = ~8.1mm H = ~7.6mm  D = ~7.6mm A = ~ 4.4mm W = ~ (H-A)/2

3.2mm Dimensions: L = ~8.0mm H = ~8.9mm  D = ~8.9mm A = ~ 3.8mm W = ~ (H-A)/2

3.0mm Dimensions: L = ~6.0mm H = ~6.0mm  D = ~6.0mm A = ~ 3.3mm W = ~ (H-A)/2

2.0mm Dimensions: L = ~4.9mm H = ~4.6mm  D = ~4.6mm A = ~ 2.3mm W = ~ (H-A)/2

Specifications

Pack Size

Single, 10 Pack, 100 Pack, 1000 Pack

Style

Round

Material

Aluminum

Wire Diameter

2.0mm, 3.0mm, 3.2mm, 4.0mm, 4.8mm, 5.0mm

Dimensions

Dimensions:
L = ~9.0mm
H = ~8.5mm
D = ~8.5mm
A = ~ 5.5mm
W = ~ (H-A)/2
