Saddle Eye Strap G316 Stainless Steel – ALL SIZES

$0.50$1.52 Inc GST

Sale!
Saddle Eye Strap G316 Stainless Steel

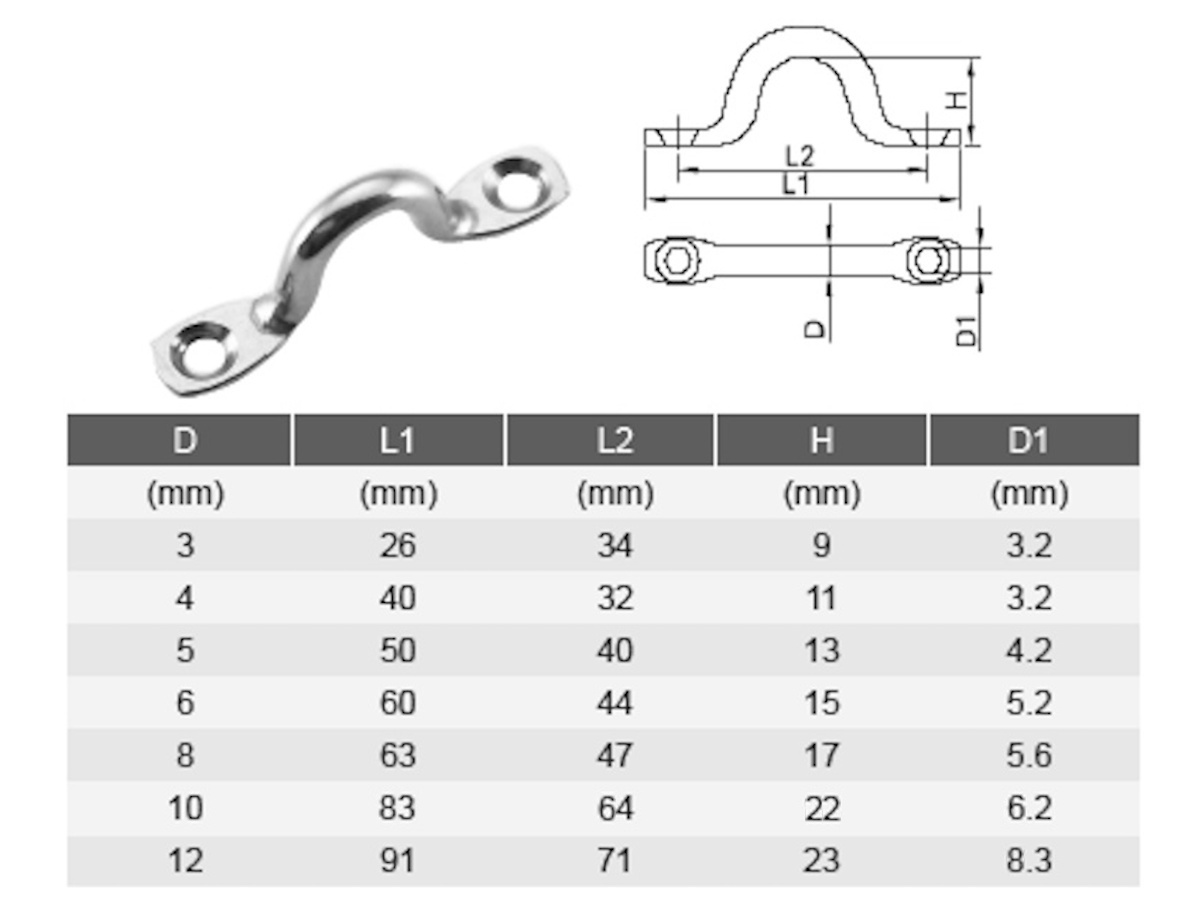

Saddle Eye Strap Dimension Diagram

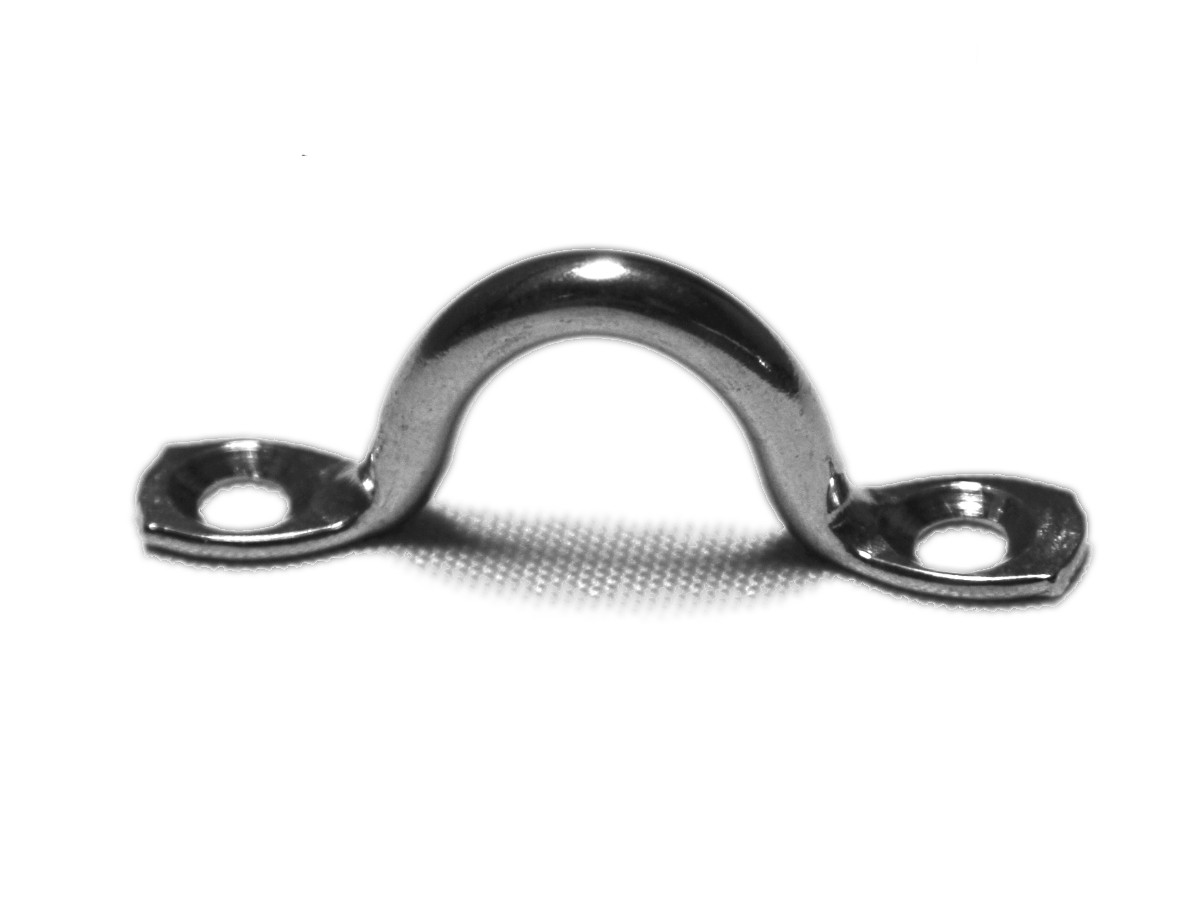

Saddle Eye Strap
Saddle Eye Strap

Saddle Eye Strap G316 Stainless Steel – ALL SIZES

$0.50$1.52 Inc GST

Clear
SKU: 1653 Category:
Volume Discount Trade Pack Pricing for:
Saddle 4mm Eye Strap G316 Stainless Steel
Saddle 5mm Eye Strap G316 Stainless Steel
Saddle 6mm Eye Strap G316 Stainless Steel
Saddle 8mm Eye Strap G316 Stainless Steel

Saddle Eye Strap G316 Stainless Steel are anchor fittings. Saddles attach wire termination fittings to a flat surface.  The saddle anchor fittings are strongest when the fastener is under a direct tension load. Consequently, saddles fasten with counter sunk screws, pan head screws, or stainless steel rivets. Additionally, saddles may fasten with Tek Screws or bolts  screwed into an embedded thread fastener such as a rivet nut or a timber insert. In summary, saddles are versatile fittings in many situations.

* * * *

Usage: Saddle fittings work with open turnbuckles, closed turnbuckles, manually swaged fittings, and hydraulically swaged terminals.  Eye Strap Saddles are in sizes that work with a specific size (range) of wire or rope. Rope fastened to a Saddle Eye Strap in a loop, should be ‘protected’ by a thimble.  The thimble distributes the load to prevent the wire being pulled through a radius that is tighter/smaller than is recommended.  Saddle Eye Strap fittings are designed to work with open turnbuckles, closed turnbuckles, manually swaged fittings, and hydraulically swaged terminals.

* * * *

Quality: All Low Cost Wire products meet our strict ISO Quality Standards. Firstly, our products achieve the optimal balance between high tensile strength, fatigue resistance, abrasion resistance, and structural stability. Secondly, that long experience with wire rope manufacturing enables the design and manufacture of aesthetically beautiful and functional products. Finally, our products have a special treatment for bright and smooth surface of wire and cable to deliver a truly top-shelf, long lasting product that will look new for ages…

* * * *

Saddle Eye Strap Trade Pack sizing is also available for volume discount transactions

Usage Tips

  • Eye Strap Saddle fittings are attachment points do not attach directly to wire rope. They are designed to be used with fasteners to attach to a flat surface.  They are strongest when the fasteners are under a tension load.
  • Wire rope passed through or around a saddle in a loop, should be 'protected' by a thimble.  The thimble acts to distribute the load and prevent the wire being pulled through a radius that is tighter/smaller than is recommended. These fittings are designed to work with open turnbuckles, closed turnbuckles, manually swaged fittings, and hydraulically swaged terminals.  Each size of Eye Strap Saddle is designed to work with a specific size (range) of wire.
  • Eye Strap Saddle fittings can be secured with various fasteners such as counter sunk screws, pan head screws, and rivets.  Other possibilities are bolts of some sort that are screwed into an embedded thread fastener such as a rivet nut or a timber insert.

Installation Considerations

  • Matching alloys is important and avoiding cross contamination is very important.
  • It is recommended that similar alloy fasteners are used so that a dis similar (corrosive) alloy reaction is avoided. Generally G304 Stainless Steel screws are used in timber (counter sunk screws in soft woods and pan head screws in hard woods). Generally, G304 Stainless Steel Rivets are used to attach Eye Strap Saddle fittings to metal surfaces (aluminium, mild steel, and stainless steel).
  • It may be necessary to (electrically) isolate and insulate fittings from the substrate material - again to avoid a galvanic (dissimilar alloys) reaction.

Specifications

Pack Size

Single

Item Diameter

4.0mm, 5.0mm, 6.0mm, 8.0mm

Material

Stainless Steel

Grade

AISI G316 (Marine)

Attachment Substrate

Concrete, Metal, TImber

Attachment Style

Saddle
