RTC Red Wire anchor Cable
RTC Red Wire anchor Cable

: Safety Wire PERE 1.5M 3.0mm/4.0mm Red 6X7 G1570 Galvanised Steel ##

$0.00 Inc GST

SKU: 86021 Category:

Description

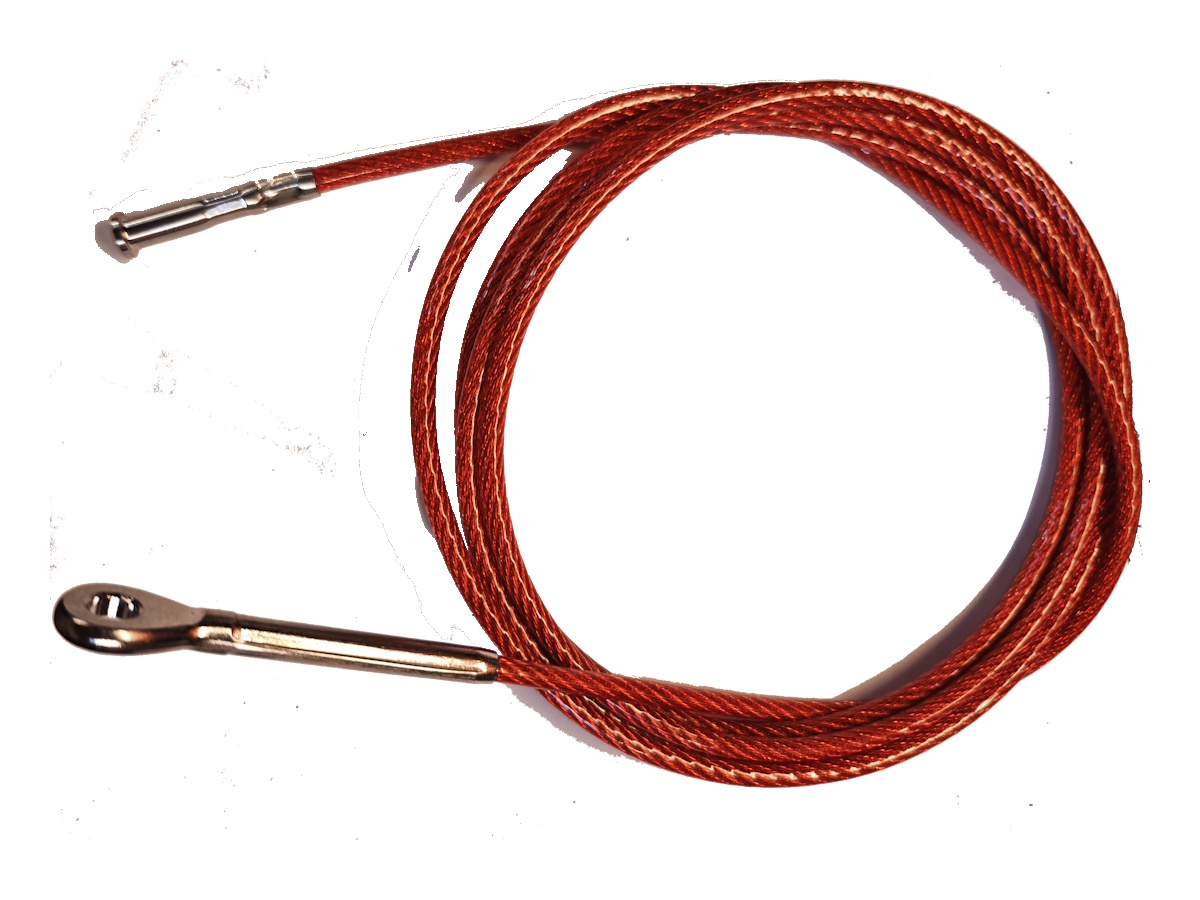

Safety Wire PERE 1.5M Red 6X7 3.0mm/4.0mm G1570 Galvanised Steel

Materials per wire:

  1. 1 x 3.2mm G316 Stainless Steel light duty rod end (small)
  2. 1 x 3.2mm G316 Stainless Steel Swage Eye
  3. Blank of Red PVC Coated 3.0mm/4.0mm 6×7 G1570 Galvanised Steel Wire Rope

Construction:

  1. Cut Wire Blanks of Red PVC Coated 3.0mm/4.0mm 6×7 G1570 Galvanised Steel Wire Rope where T2T Target length is 1.5M
  2. The SwageEye uses up xxmm and the Rod End uses up xxmm
  3. Cut blanks to xxxxmm = 1500mm – (xxmm) + (xxmm)
  4. Using the Crimping jaws are from 240 – Hex Shape for 3.5mm Simplex Stainless Steel Fittings in the Hydraulic Bench Press and press the Swage Eye to ~3000PSI.
  5. Using the Crimping jaws are from 240 – Hex Shape for 2.5mm Simplex Stainless Steel Fittings in the Hydraulic Bench Press and press the Swage Eye to ~3000PSI.
