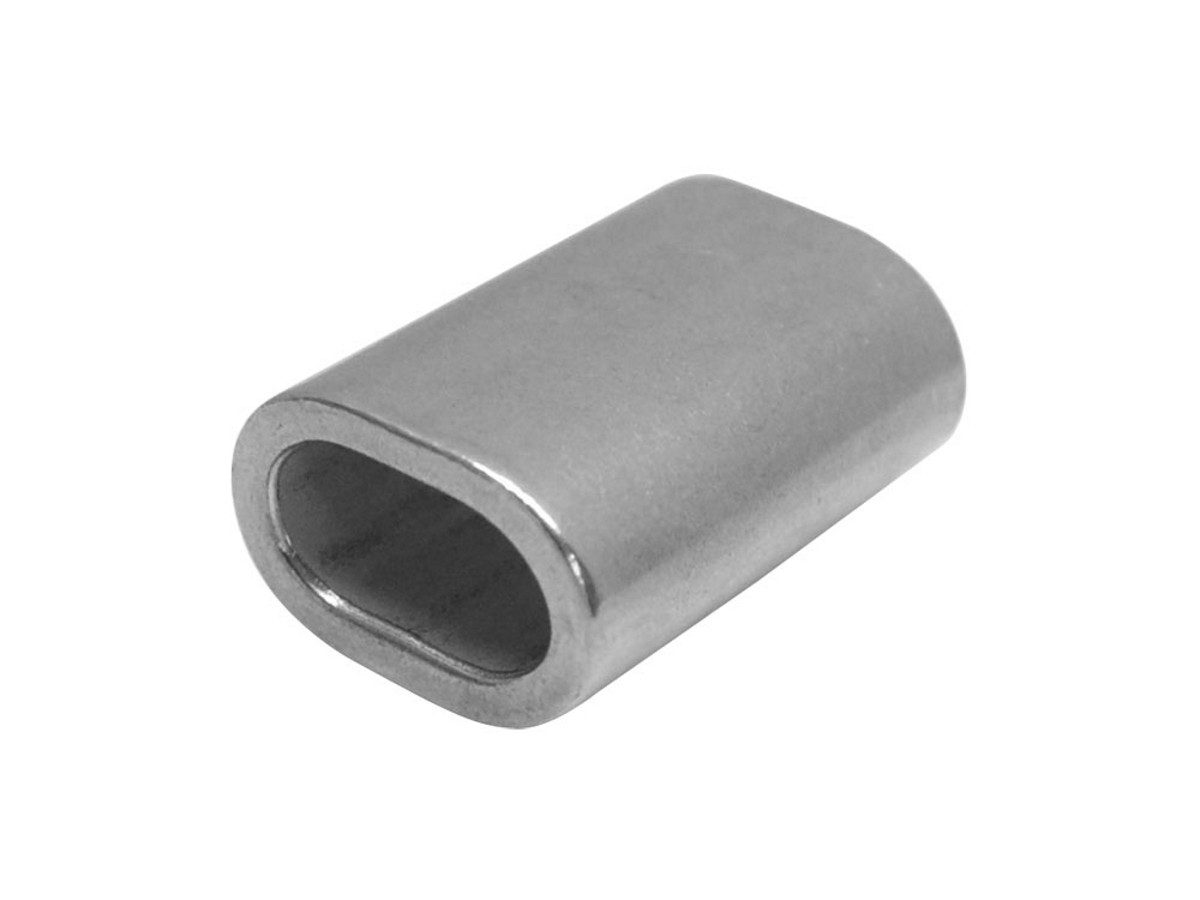

Swage Sleeve 1.0mm Oval Nickel Coated Copper TRADE PACKS
Our 1.0mm Oval Nickel Coated Copper Swage Sleeves (Ferrules) are ‘machine swages’ – also known as crimps or ferrules. They are made from nickel coated copper, and they are designed to work with High and Medium Flexibility Stainless Steel Wire Rope. Each size of Swage is designed to work with a specific size of wire. We have two styles available – Hourglass and Oval. Oval is generally viewed as ‘machine’ swages and normally require a hydraulic press. Duplex or Hourglass Swages are viewed as ‘hand’ swages and normally require only a mechanical tool. These standard length Ferrules are compliant with the EN 13411-3 and DIN 3093 Standards.
Description
Our 1.0mm Oval Nickel Coated Copper Swage Sleeves (Ferrules) are ‘machine swages’ – also known as crimps or ferrules. They are made from nickel coated copper, and they are designed to work with High and Medium Flexibility Stainless Steel Wire Rope. Each size of Swage is designed to work with a specific size of wire. We have two styles available – Hourglass and Oval. Oval is generally viewed as ‘machine’ swages and normally require a hydraulic press. Duplex or Hourglass Swages are viewed as ‘hand’ swages and normally require only a mechanical tool. These standard length Ferrules are compliant with the EN 13411-3 and DIN 3093 Standards.
Usage: The end of a length of wire is threaded through one side of a swage, the wire is then looped around a thimble, and the end of the wire is threaded back through the swage. Generally, we recommend swaging/crimping these Sleeves with a Hydraulic Press to retain a predictable finish and reliable MBS. Sleeves below 3mm may be crimped manually, but larger OVAL sleeves MUST be crimped hydraulically. Proper sizing and swaging technique using Swage Sleeve splicing confers 90% of the wire rope breaking strength given the resultant splice conforms with published and tested tables.
Choose Quality for Excellent Results...Read More
All Low Cost Wire products meet our strict ISO Quality Standards. Firstly, our products achieve the optimal balance between high tensile strength, fatigue resistance, abrasion resistance, and structural stability. Secondly, our long experience in the industry enables the design and manufacture of aesthetically beautiful and functional products. Finally, our products have a special treatment for bright and smooth surface of wire and cable to deliver a truly top-shelf, long lasting product that will look new for ages…How to plan regular cleaning & Maintenance for increased product durability... Read More
To ensure the longevity of your product, a planned regular cleaning and maintenance approach is highly recommended. Whether the product is wire, fittings, or even tools -the frequency of cleaning, maintenance and inspection will vary depending on many factors such as environment, usage levels, required performance, and any inherent risk or safety factors. All of these things are worthy of consideration when planning predictive and/or preventative maintenance...Given the vast proportion of Australia's population resides near a shoreline - the effect of a marine environment is often the most significant factor in product longevity
The table below proposes a cleaning schedule based only on "environment". It is intended as a guide and should be varied as required. We recommend using non-aggressive cleaning agents and fresh water for routine maintenance.
| Environment | Agression Level | Distance from Coast | Cleaning Schedule |
|---|---|---|---|
| Indoors environment | Very Low | N/A | Every 18 - 48 Months |
| Clean inland environment | Low | 20km + | Every 10 - 12 Months |
| Moderate urban or coastal environment | Medium | 1-5km | Every 4 - 6 Months |
| Harsh urban or coastal environment | High | < 500m | Every 2 - 3 Months |
| Severe coastal/ marine environment | Extreme | < 500m | Every 1 - 2 Weeks |
