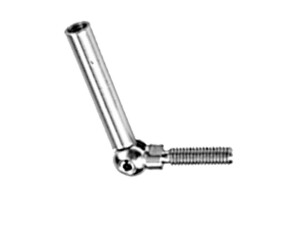

Swivel Bolt RHT M6 x 15mm G316 Stainless Steel

$9.98$97.65 Inc GST

Swivel Bolt RHT M6 x 15mm G316 Stainless Steel

$9.98$97.65 Inc GST

Clear
SKU: 3003 Category:

Product Description

Swivel Bolt RHT M6 x 15mm G316 Stainless Steel has internal and external M6 threads. It works with a hydraulically swaged stainless steel swaged terminal bolts.  Together, they are available to use with multiple diameters of stainless steel wire rope to fasten wire into a metal end post. Because of the swivel nature of the fitting, they are best used with vertical metal posts (that require an orthogonal bolt of nutsert connection). The swivels can also be combined with Timber Inserts for a use in Timber posts as well. Combined with left hand threaded terminal bolt, these fittings provide a streamlined professional look for both commercial and private use.

* * * *

Usage: Swivel Bolt RHT M6 x 15mm fasten into the posts or uprights directly.  They also serve as the fastening points that anchor a run of balustrading wire into a post.  To make the job easier, try our ‘6mm Combination Drill Tap RHT’ Simply put, IT ROCKS – saves your wrists, speeds up the install and demonstrates a bit of ingenuity. We also have Nutserts (rivnuts or rivet nuts), nutsert installation tools, Timber Inserts and SuperTuff RHT drill taps that complement this type of fitting.

* * * *

Quality: All Low Cost Wire products meet our strict ISO Quality Standards. Firstly, our products achieve the optimal balance between high tensile strength, fatigue resistance, abrasion resistance, and structural stability. Secondly, that long experience with wire rope manufacturing enables the design and manufacture of aesthetically beautiful and functional products. Finally, our products have a special surface treatment. This bright and smooth surface delivers a truly top-shelf, long lasting product that will look new for ages…

* * * *

Dimensions: D = ~ 8.0mm; D1 = ~ 12.0mm; L = ~ 20.0mm; L1 = ~ 40.0mm; L2 = ~ 50.0mm

Usage Tips

  • Swivel Bolt fittings are attachment points that do not attach directly to wire rope. They are designed to attach a threaded hole - either in hollow section, plate or an insert.
  • You may want locking nuts (and washers)
  • They are strongest when the fasteners are under a tension load.
  • These fittings are designed to work with swaged bolts or closed turnbuckles (e.g. bolt swage rigging screws) which are hydraulically swaged terminals.

Installation Considerations

Swivel Bolts work best in situations where you need to

  • run a wire at an angle while attaching square to a metal post or plate; or
  • need to facilitate a dynamic / floating connection.

In application, the short thread length is recommended for fastening to a common corner post as the Swivel Bolts are very robust/strong. Use a 3mm pilot hole prior to tapping - to save the point on the drill tap.  And with a short length, they will NOT collide in a 50mm x 50mm corner post (this is the most common size of metal hollow section  posts).  And contrary to popular belief, a longer length is NOT stronger - its the threads that count.  So tap the threads properly or use nutserts.

Specifications

Pack Size

Single, 10 Pack, 100 Pack, 1000 Pack

Thread

M6 RHT

Material

Stainless Steel

Grade

AISI G316 (Marine)

Attachment Substrate

Metal

Attachment Style

Machine Stud

Dimensions

D = ~ 8.0mm;
D1 = ~ 12.0mm;
L = ~ 20.0mm;
L1 = ~ 40.0mm;
L2 = ~ 50.0mm
