U Clip G316 Stainless Steel

$1.38 – $544.98 Inc GST

Wire Fence Clip fittings can be used to fix a single stainless steel wire rope to a structure or wall. They are G316 and designed to work with stainless steel wire Rope, rod or dowelling up to 7.0mm to fasten netting, shade cloth, or shade sail edges to a flat structure edge.

Clear
SKU: 8729 Categories: ,

Product Description

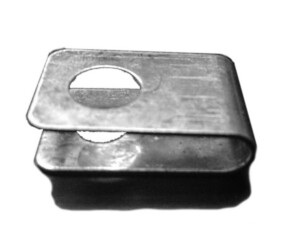

U Clip G316 Stainless Steel
Wire Fence U Clip are G316 Stainless Steel fittings.  The fitting delivers military performance befitting its specification and design parameters. While extensively used in Bird Proofing, they also fix a wire at the midway point on a wall or a structure. In addition, the U Clip Fittings are ductile (bendable) and have a low tendency to work harden (20+ bend cycles are guaranteed).

****

Application:

Simply slip the U-Clips over the wire, rod, or fence section.  The U-Clip design creates a unique ‘lever action effect’. Now the clip to be easily closed by finger pressure and “held in place” until it is permanently fixed into place with a Tek screw. Finallty, the ‘wide open mouth’ design of the U-Clip makes it easy to fit the clip onto vertical or horizontal straining wires as well as onto a standard weldmesh fence panel.

The diameter of the bend of the our clip is 7.5mm – it is designed to neatly fit wires from 2.4mm up to 7mm in diameter and will not be loose. Additionally, the hole in the clip is 7mm and 8mm on the other. As a result, this design allows self centering with large flange head fasteners (such as Tek Screws). We manufacture the clips with very tight tolerances to achieve a very neat fitting fence clip.

****

Features and Benefits:

  • Marine Grade 316 Stainless Steel
  • Brushed smooth finish to prevent cuts
  • Compatible with both all sorts of wire
  • Can be combined with Tek Screws and nylon washers to isolate the clip from the mounting point

****

Specifications:

  • 0.5mm thick
  • Pre-drilled holes 7mm / 8mm
  • G316 Stainless Steel
  • 30mm x 20mm
  • suits up to 7mm wire or dowelling

****

Dimensions: W = ~20.0mm L = ~30.0mm H = ~7.5mm H1 = ~7.0mm H2 = ~8.0mm

As part of the manufacturing process, the U-Clip is bent at the right spot to achieve the best possible looking finish once it has been screwed into place through the self centering holes. The shape of the clip takes advantage of large flanged head fasteners to shape the clip to securely and tightly hold a range of wire from 2.4mm to 7.0mm. The lever action design of the U-Clip so that both legs come together in the closed position, flat and parallel.

Firstly, these fittings set up bird netting cable protection systems with various types of cables.  Secondly, their use allows the cables to be run tight to the walls and REMAIN tight to the walls over a lengthy span.  Finally, the G316 nature of the clips means that you never have to worry about a dis-similar alloys reaction with working with stainless steel wire rope.

Specifications

Pack Size

Single, 10 Pack, 100 Pack, 1000 Pack
Material

Stainless Steel
Grade

AISI G316 (Marine)
Wire Diameter

0.8mm, 1.0mm, 1.2mm, 1.5mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 4.8mm, 5.0mm, 6.0mm, 6.4mm
Dimensions

W = ~20.0mm
L = ~30.0mm
H = ~7.5mm
H1 = ~7.0mm
H2 = ~8.0mm
