1.0mm 7×7 G316 Stainless Steel Wire Rope

$0.80$207.04 Inc GST

Sale!

1.0mm 7×7 G316 Stainless Steel Wire Rope

$0.80$207.04 Inc GST

Clear
SKU: 1777 Category:

Product Description

1.0mm 7×7 G316 Stainless Steel Wire Rope is a Premium wire for delicate work. This 1.0mm 7×7 G316 Stainless Steel Wire Rope (Marine Grade) has very low stretch with mid range flexibility.  The size and rigidity of the wire means it handles easily. As a result, it best suits Manually Swaged fittings. Both Professionals and DIY guys choose this wire for projects. Usage of the wire suits fittings for 1.0mm or  1.2mm. Tensile Strength (MBS) = ~52.0 kg

****

Application: This is a flexible wire has virtually no stretch coefficient. We recommend this wire with manually swaged fittings such as Thimbles and Ferrules. Other uses include: Art Installations, Light Shop Fitting, Delicate Trellis structuring, ‘Green Wall’ construction, Invisible Object Suspension, including Theatre Production Infrastructure.

****

Length of Wire: Use combinations of the offered lengths to get the desired total length. For example – choose a quantity of “8” of the 10M length to select a single length of 80 Metres. All Wire Rope orders are cut and shipped as a single length. As a result, each wire order is packaged as a coil or a reel depending on length and all are factory wrapped and sealed. A requirement of less than 100M on a reel needs a special order (please phone first).

****

Quality: All Low Cost Wire products meet our strict ISO Quality Standards. Likewise, our Stainless Steel Wire is AISI Mill Certified at manufacture. Consequently, an AISI Mill certificate of alloy composition (copy) is available for a small additional fee at the time of purchase. Our wire rope delivers the optimal balance between high tensile strength, fatigue resistance, abrasion resistance, and structural stability. Finally, our process provides a special treatment for a bright and smooth surface on the wire and cable. As a result, this delivers a truly top-shelf, long lasting product that will look new for ages…

Usage Tips

  • First of all, this wire must be mechanically fastened.
  • Cutting of the wire is best done using Parrot Beak cutters (collapsing trapezoidal design) rather than shears or a grinder.
  • Terminal Loops are formed with Mechanical fastening or manual swaging. In addition, terminal loops must use stainless steel thimbles (eyelets) to retain the strength of the wire by distributing the load along the entire length of wire in the terminal loop. Recommended for all structures with this diameter.
  • Manual swaging is done using Ferrules (or crimps or hand swages) rather than Wire Rope Grips. Nickel Coated Copper is used instead of Aluminum because matching alloys is important. As a result, catastrophic swaging failure will not occur. Aluminium swages WILL cause a dissimilar alloys reaction and as a result corrode the Stainless Steel wire. Low Cost Wire strongly recommends an All-in-1 swaging tool. Recommended for all structures

Installation Considerations

  • Matching alloys is important and avoiding cross contamination is very important. Standard fittings for G316 Stainless Steel Wire are made from either Nickel Coated Copper or Stainless Steel. Contact with Aluminium or Carbon Steel is NOT recommended as it will cause a corrosive (galvanic) reaction.
  • It is recommended that similar alloy fasteners are used so that a dissimilar (corrosive) alloy reaction is avoided. Generally G304 Stainless Steel screws are used in timber (counter sunk screws in soft woods and pan head screws in hard woods). Generally, G304 Stainless Steel Rivets are used to attach Eye Strap Saddle fittings to metal surfaces (aluminium, mild steel, and stainless steel).
  • It may be necessary to (electrically) isolate and insulate fittings from any non stainless steel substrate material - again to avoid a galvanic (dissimilar alloys) reaction. This can be done using an insulation device such as nylon washers or grommets

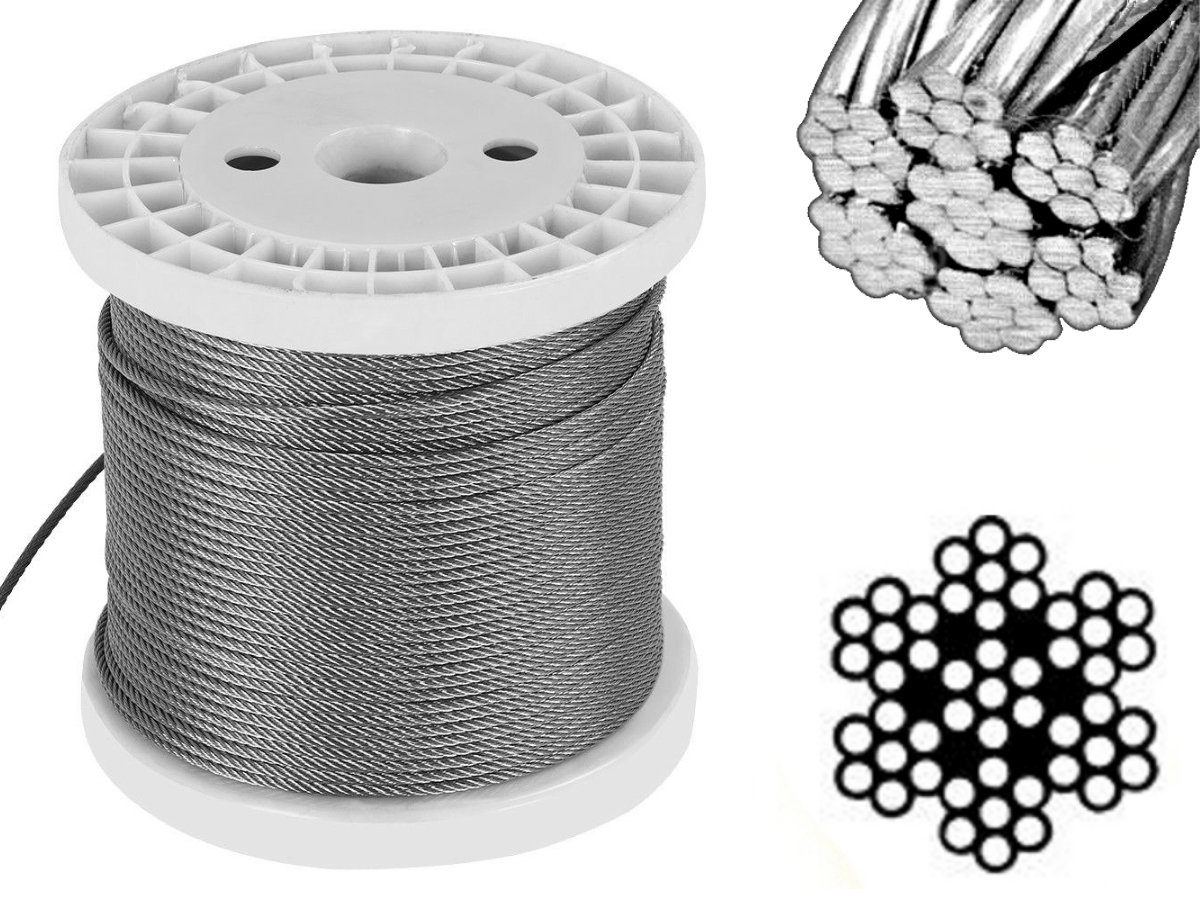

  • Lengths of wire less than 100M are cut and labelled as a coil. Lengths of 150M and above are (generally) delivered on a reel however, small lengths can be put on a drum for a small additional cost (please refer to our Reeling Service

Relevant FAQs

Specifications

Length

1M, 10M, 50M, 100M, 150M, 200M, 305M

Wire Structure

7×7

Wire Diameter

1.0mm

Material

Stainless Steel

Grade

AISI G316 (Marine)

Coating

None

Flexibility

Mid

Core

WSC

Connection Style

Manual Swaging

Lay

RHOL (Right Hand Ordinary Lay)

MBS (Tensile Strength)

52.0 kg

Brand

Low Cost Wire
