4.0mm-6.0mm 7x19 G316 Wire Coil with Swages, Thimbles Ind 468
4.0mm-6.0mm 7x19 G316 Wire Coil with Swages, Thimbles Ind 468
Coated Soft Eye
Wire Rope Thimble Collection
Nickel Coated Copper Ferrule Collection

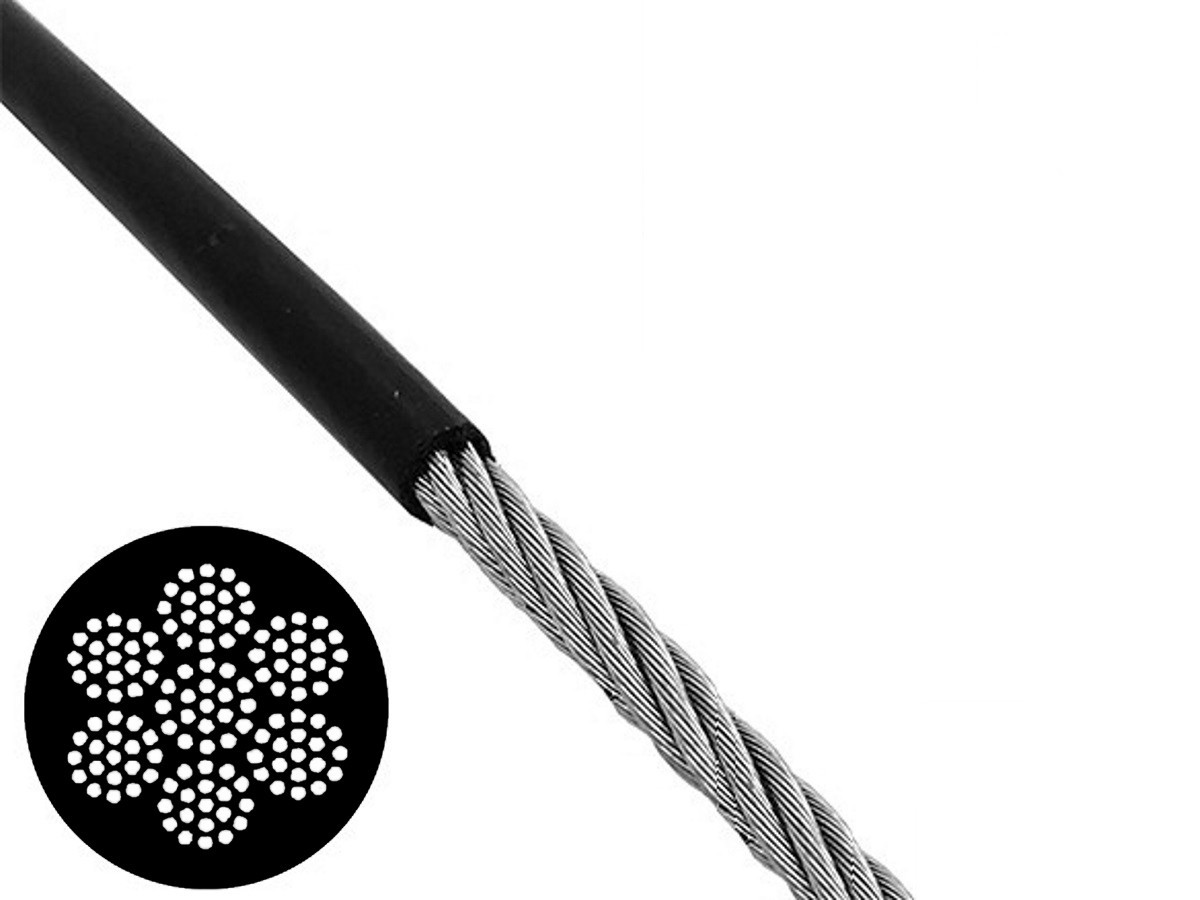

7x19 Black PVC Coated

4.0mm/6.0mm 7×19 Black Coated HS760 Tool Swages Thimbles Wire Use Kit

$4.95 – $179.98 Inc GST

4.0mm/6.0mm 7×19 Black Coated HS760 Tool, Wire, Swages, Thimbles – Wire Use Kit groups tools and fittings required for PVC Coated 4.0mm Stainless Steel Wire. This kit provides the basics components – to work with the wire leaving the coating on.

Select optionsFrom: $5.50 Inc GST
Select optionsFrom: $179.98 Inc GST
Select optionsFrom: $34.86 Inc GST
Select optionsFrom: $9.54 Inc GST
Select optionsFrom: $4.95 Inc GST
Select optionsFrom: $120.89 Inc GST
SKU: 63223 Category:

Description

4.0mm/6.0mm 7×19 Black Coated HS760 Tool, Wire, Swages, Thimbles – Wire Use Kit groups tools and fittings required for PVC Coated 4.0mm/6.0mm Stainless Steel Wire. This kit provides the basics components – to work with the wire leaving the coating on. Basically you need:

  • Wire (of some length) which sort of depends on the project.
  • Ferrules (also called crimps or swages). These fasten either the wire to itself  (and form a loop – 1 required per loop) or complete a splicing operation (at least 2 required per lap-splice),
  • Thimbles (also called eyelets) as these are the reinforcing strip of stainless steel metal that goes inside of a  terminal loop (called a Hard-Eye with a thimble and a Soft-Eye without a thimble,
  • Swager ( swaging or crimping  tool)  This manual swager does NOT have a cutting function so you will need a parrot beak cutter as well,
  • Heatshrink to for a neat and waterproof connection, and a
  • Parrot Beak Cutter which simply cuts the wire.

Usage: Using the 4.0mm/6.0mm 7×19 Black Coated HS760 Tool, Wire, Swages, Thimbles – Wire Use Kit is easy.  Simply cut the wire to length with the Parrot Beak Cutters – each ‘eye’ takes about 90mm of wire. When leaving the coating on, use 4.0mm ferrules and thimbles.  Just slip one end into a ferrule, make a loop and slip the end back into the ferrule – without a thimble this is a soft eye. We recommend using a thimble inside the loop to form a hard eye as the thimble distributes the load on the loop.  Additionally, the thimble limits the radius through which the wire is pulled – thereby maintaining the MBS and load characteristics of the wire.

Quality: All Low Cost Wire products meet our strict ISO Quality Standards. Firstly, our products achieve the optimal balance between high tensile strength, fatigue resistance, abrasion resistance, and structural stability. Secondly, that long experience with wire rope manufacturing enables the design and manufacture of aesthetically beautiful and functional products. Finally, our products have a special treatment for bright and smooth surface of wire and cable to deliver a truly top-shelf, long lasting product that will look new for ages…

Wire Use Kits are also available for different sizes of Wire Rope.
