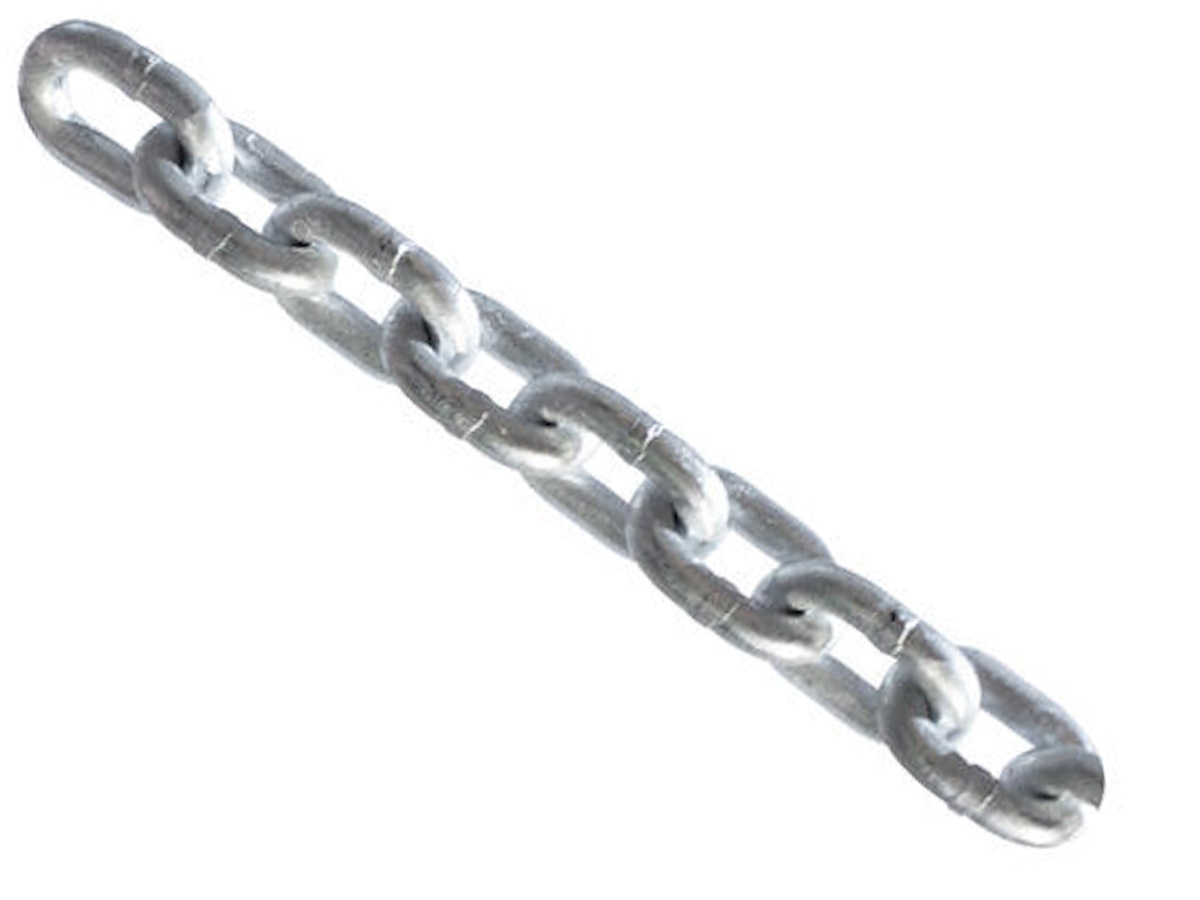

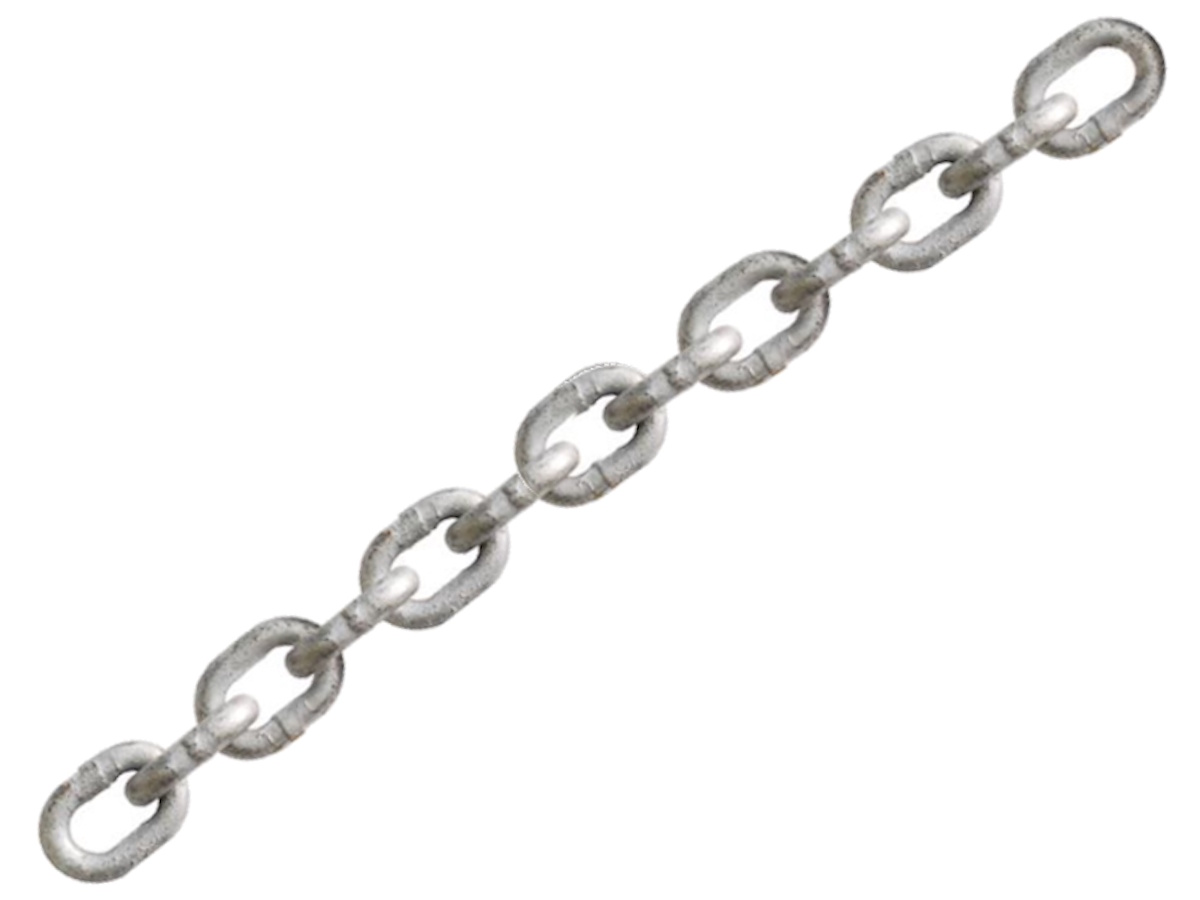

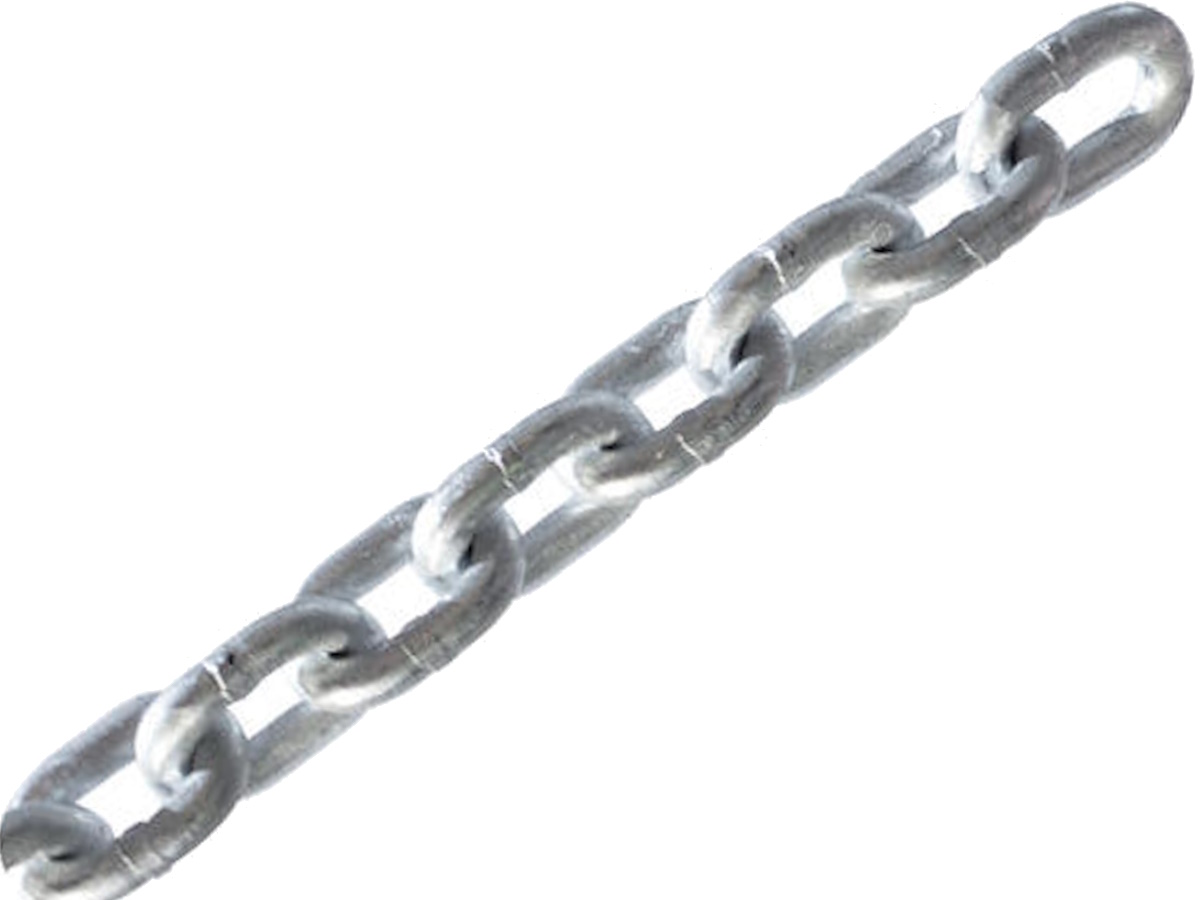

6.0mm Short Link G30 Galvanised Steel Chain 0.4T TRADE PACKS
6.0mm Galvanised Steel Chain is the heavy general purpose rated chain. This chain suits rigging and Construction. The G30 (L) Grade is calibrated chain used generally used in marine or vertical hanging support applications.
Shorter Lengths and other sizes in our…ALL SIZES
Potentially Very Useful Related Items…
Description
6.0mm Galvanised Steel Chain is the heavy general purpose rated chain. This chain suits rigging and Construction. The G30 (L) Grade is calibrated chain used generally used in marine or vertical hanging support applications. It is manufactured from carbon steel which has a high resistance to impact and wear, meets AS 2321 “short link chain for lifting purposes”. It is class A hot dipped galvanised. Using a Safety factor of 5x, this change has a WLL of 0.4T and a MBS of 2000 kg.
Usage: This is a very strong chain making it easy to work with and conform without stretch. Wire and fitting size also affect desired chain size. Anticipated load determines optimum chain size. Additional factors to consider are the dimensions of the links and the material of related fittings. Additional uses include: Picture (statue?) Hanging, Shop Fitting, Shade Sails, Trellis structuring, ‘Green Wall’ construction, Rigging Slings, Theatre Production Infrastructure – Stage Lights, Curtains, & Prop Construction.
Length of Chain: Use combinations of the offered lengths to get the desired total length. For example – choose a quantity of “8” of the 1M length to select a single length of 8 Metres. We cut and ship all Chain orders as a single length. As a result, each wire order is packaged as a coil or a reel depending on length and all are factory wrapped and sealed. A requirement of less than 100M on a reel needs a special order (please phone first).
Quality: All Low Cost Wire products meet our strict ISO Quality Standards. Likewise, our Stainless Steel Wire is AISI Mill Certified at manufacture. Consequently, an AISI Mill certificate of alloy composition (copy) is available for a small additional fee at the time of purchase. Our wire rope delivers the optimal balance between high tensile strength, fatigue resistance, abrasion resistance, and structural stability. Finally, our process provides a special treatment for a bright and smooth surface on the wire and cable. As a result, this delivers a truly top-shelf, long lasting product that will look new for ages…

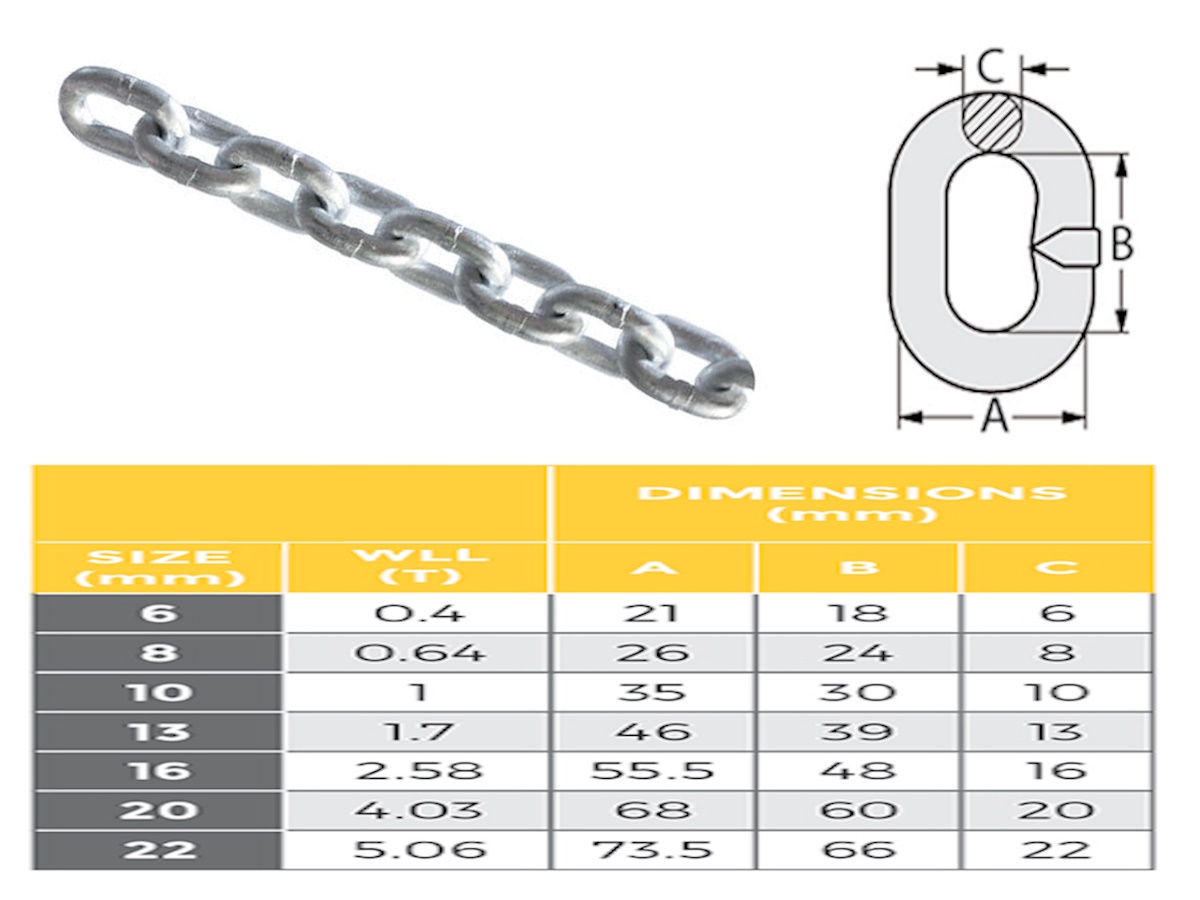

Dimensions: D = ~6.0mm A = ~18.0mm H = ~9.0mm
