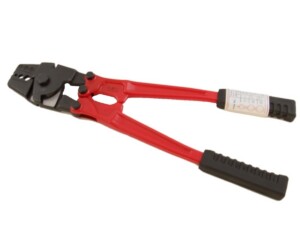

Heavy Duty Hand Crimping Tool Range 1.5mm-3.5mm
The Heavy Duty Hand Crimping Tool is a 350mm 3 Hole Crimping Tool. It is an excellent Manual Hand Crimp Tool for Wire Rope. Firstly, it has an included cutting ability. Secondly, this tool has a range of sizes of ferrules to crimp round or hourglas sleeves. The multipurpose 3 crimping hole design exits to meet your different needs. The jaws have dies formed from hardened machine steel. The jaws are suitable for both aluminium, copper, and brass sleeves. Finally, the 3 Holes (crimping positions) suit sleeves/ferrules for 1.5mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, and 3.2mm wire rope.
Description
The Heavy Duty Hand Crimping Tool is a 350mm 3 Hole Crimping Tool. It is an excellent Manual Hand Crimp Tool for Wire Rope. Firstly, it has an included cutting ability. Secondly, this tool has a range of sizes of ferrules to crimp round or hourglass sleeves. The multipurpose 3 crimping hole design exits to meet your different needs. The jaws have dies formed from hardened machine steel. The jaws are suitable for both aluminium, copper, and brass sleeves. Finally, the 3 Holes (crimping positions) suit sleeves/ferrules for 1.5mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm and 3.5mm wire rope.
What components make up this product?
- Cast Steel Manual Crimping tool for use with aluminium or copper crimp sleeves ranging in size from 1.5mm to 3.5mm
What are the important product dimensions?
- Length: 350mm
- Crimping Dies: 3 holes
- Crimping Capacity: 1.5mm, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm and 3.5mm wire rope.
- Cutting Capacity: up to 3.5mm Wire Rope
What are the important product features?
- Portability: high
- Repeatability: high
- Usage: 1 Hand or 2 Hands
- Grip: Rubberized vibration damping pads
- Corrosion Resistance: medium
What are the product usage guidelines?
- Manually crimps fittings (Hourglass or Round Ferrules) that secure and terminate the wire rope.
- This tool does NOT suit oval stainless steel sleeves or stainless steel simplex swaged fittings.
- 2 Handed use is possible but not recommended due to coordination difficulties.
- 1 Handed use is achieved by opening the tool fully, while holding the top lever, place the end of the bottom lever on a stable surface, inserting the sleeve and apply weight to the top lever thus folding the tool closed.
- Common applications include: Tagging, Art Installations, Light Shop Fitting, Delicate Trellis structuring, ‘Green Wall’ construction, Object Suspension, including Theatre Production Infrastructure.
