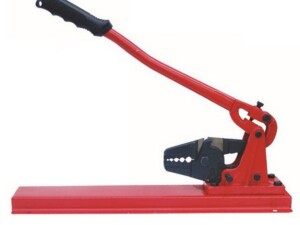

Professional Manual Bench Swager

$149.98 Includes GST

Professional Bench Swaging Tool Close up
Professional Bench Swaging Tool Close up
Professional Bench Swaging Tool Close up
Professional Bench Swaging Tool
Professional All in 1 Cuter and Hand Swager Sizing Chart
Bench Swager Close up

Professional Manual Bench Swager

$149.98 Includes GST

SKU: 8093 Categories: , , ,

This awesome Professional Manual Bench Swager is a bench mounted version of our All in 1 Mechanical Swaging & Cutting Tool. As its portable cousin, this tool is industry fabrication quality and IMHO – one of the best hand tools around. As well, this tool has the improved lever shafts secured with an adjustable – made stronger to last longer. It is well designed with reliable, solid construction and works with Aluminium & Copper & Nickel Coated Copper Ferrules and end stops. These Jaw Dies are what are required to ‘swage’ a ferrule and are differentially sized to accommodate the various swages. The precise crimping die sets and integral lock with self-releasing mechanism ensure high-quality crimping effect after crimping repeatedly.

Our Professional Manual Bench Swager is a 540mm All-in-One Swaging and Cutting Tool with One Handed operation featuring Vibration damping Rubber Grips and forged jaws. This shock-proof design with ergonomic handles to eliminate vibration makes the tool usable over extended timeframes
The integral Side Cutting Function for wire up to 5.0mm Galvanised or Stainless Steel with forged steel jaws make easy work of all structures of wire (7×7, 7×19, and 1×19)
Swaging/Crimping of Hourglass/Duplex Ferrules/Swages made of Nickel Coated Copper or Aluminium and the precise crimping die sets and integral lock with self-releasing mechanism ensure high-quality crimping effect after crimping repeatedly.
Suits swages/ferrules for 1.5, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 4.8mm, 5.0mm wire rope.
Included items are the Professional Manual Bench Swager 5400mm All-in-One Swaging and Cutting Tool and a Sizing Guide

General Usage

This tool swages / crimps / squishes aluminium and copper - please note that it will NOT work on Stainless Steel fittings (often called or referred to as Hydraulically Swaged Fittings - these fittings logically require a hydraulic swaging tool to pressure weld the wire into the fittings...

Cutting

Wire is placed between the slots on either side of the tool and as the tool is closed, the wire is cut cleanly.

Swaging

Swaging it the act of reducing a oval shaped Ferrule into a tube. The Ferrule is used with a thimble to form a terminal loop in the wire. The Swaging tool is opened up and the top handle is held with the bottom handle resting on a bench or the floor. The Ferrule is then placed between the jaws so that closing of the tool will result in the ovoid shape being reduced to a tube.

Reference

Please consult the reference table included with the tool to determine which of the factory formed dies should be used in your application. You may also consult our swaging chart

Our Professional Manual Bench Swager is a 540mm All-in-One Swaging and Cutting Tool with One Handed operation featuring Vibration damping Rubber Grips and forged jaws. This shock-proof design with ergonomic handles to eliminate vibration makes the tool usable over extended timeframes
The integral Side Cutting Function for wire up to 5.0mm Galvanised or Stainless Steel with forged steel jaws make easy work of all structures of wire (7x7, 7x19, and 1x19)
Swaging/Crimping of Hourglass/Duplex Ferrules/Swages made of Nickel Coated Copper or Aluminium and the precise crimping die sets and integral lock with self-releasing mechanism ensure high-quality crimping effect after crimping repeatedly.
Suits swages/ferrules for 1.5, 1.6mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 4.8mm, 5.0mm wire rope.
Included items are the Professional Manual Bench Swager 5400mm All-in-One Swaging and Cutting Tool and a Sizing Guide

Additional Information

Weight 6.2 kg
Size - Length

540mm

Power Source

Manual

Wire Diameter

1.5mm, 1.6mm, 1.8mm, 2.0mm, 2.4mm, 3.0mm, 3.2mm, 4.0mm, 4.8mm, 5.0mm

Material

Forged Steel
